OUTDOOR · LAN SERIES
LAN SER Minimalist Architectural Bollard
12W · 2700K/4000K · Ra80 — minimalist architectural bollard for modern gardens and pathways.
Home / Outdoor Luminaires / Led Bollards Light / LAN SER
LAN SER 12W in Sand Black — a slim 120x120mm square line for modern garden pathways
LAN Minimalist Architectural LED Bollard
LAN SER · architectural square pathway bollard · 12W · 120x120mm · 2700K/4000K Ra80
The LAN SER is a minimalist architectural LED bollard for pathways, drawing one slim 120x120mm square line along modern gardens and walkways instead of a bulky column with scattered dots.
This LAN SER modern bollard runs a single 12W SMD engine across five heights from 30 to 100cm at 2700K/4000K Ra80. The die-cast aluminum body with PC lens runs direct on 100-240V in Sand Black or Sand Gray to sit quiet against paving and planting.
- 12W integrated SMD LED chips
- Heights 30cm–100cm, 5 models in one family
- 2700K/4000K, Ra80, warm inviting glow
- Die-casting AL+PC, 100-240V, Sand Black/Sand Gray
Datasheet
LAN SER full specifications
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | SMD |
| Finishing | Sand Black/Sand Gray |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 421230 18K3/K4 | 120*120*300MM | Ra80 | 2700K/4000K | 12W |
| 421240 18K3/K4 | 120*120*400MM | Ra80 | 2700K/4000K | 12W |
| 421260 18K3/K4 | 120*120*600MM | Ra80 | 2700K/4000K | 12W |
| 421280 18K3/K4 | 120*120*800MM | Ra80 | 2700K/4000K | 12W |
| 42121000 18K3/K4 | 120*120*1000MM | Ra80 | 2700K/4000K | 12W |
Why LAN for Minimalist Garden Pathways
A slim architectural line that keeps the walkway rhythm clean
LAN 120x120 slim line keeps pathway rhythm clean
Architects draw a pathway as rhythm before they draw light. The LAN SER is an architectural square pathway bollard that keeps that rhythm clean: one slim 120x120mm upright repeated at an even step, so the eye reads a quiet line of markers instead of scattered dots. It belongs to a full LED bollard range for gardens and paths, where taller columns and mushroom heads cover heavier moods.
LAN versus CUBO-G and CORN-H 12W silhouette choice
That slim section is the whole difference inside this 12W family. See CUBO-G square park column for lawns or CORN-H compact villa head for doorways.
- CUBO-G 120x120 upright — real visual mass for lawns and estate drives
- CORN-H 170x120 head — compact villa path head for doorways and private walks
- LAN slim 120x120 line — minimalist line where the pathway, not the fixture, is the composition
LAN 30-40cm and 60-100cm height and 100-240V simplicity
Five heights from 30 to 100cm share one 12W SMD engine at 2700K/4000K Ra80: low 30-40cm markers edge planting beds below the sightline, 60-100cm uprights carry main walks with a wider pool at ankle level. Sand Black reads crisp against pale paving, Sand Gray sits quiet against stone; the die-cast aluminum body with PC lens runs direct on 100-240V, non-dimmable, so circuits stay simple.

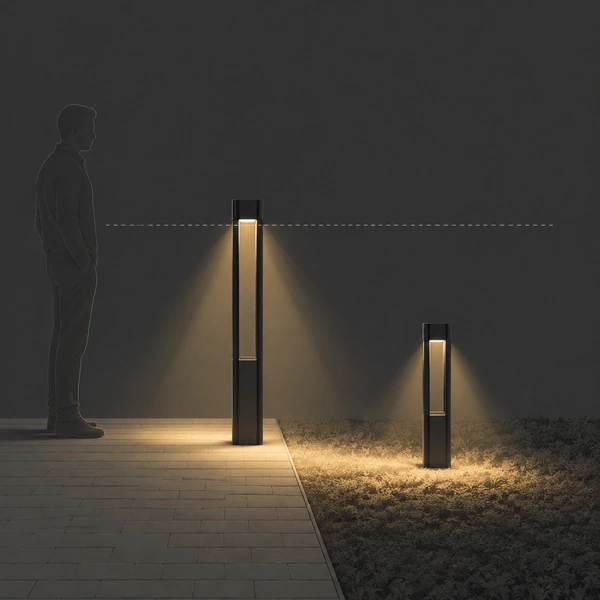

Even steps with overlapping pools — the slim LAN line leads the eye down the walk
| Model | Line | Character | Best for |
|---|---|---|---|
| LAN SER | Slim 120x120 line, 12W | Quiet rhythm marker | Minimalist garden pathways |
| CUBO-G | Square 120x120 column, 12W | Visual mass, park furniture | Lawns, parks, estate drives |
| CORN-H | Compact 170x120 head, 12W | Villa doorway detail | Private walks, courtyards |
FAQ
Minimalist bollard answers for pathway projects
Its discipline: one slim 120x120mm section repeated unchanged across all five heights. So a whole walk reads as a single architectural line in daylight and a quiet rhythm of pools at night. Like the best minimalist bollards, it stays seen-but-not-seen — the path is the composition, not the fixture. The LAN ships exactly this slim-line 12W range in 120x120 section from 30 to 100cm.
Read the elevation, not the spec table — all three share the 12W SMD engine. If the thinnest silhouette wins, take LAN: its plain 120x120 upright draws a line. If the drawing needs weight that reads across a lawn, take CUBO-G with its square park column. If the detail is a doorway or courtyard wall, take CORN-H with its compact 170x120 head. The LAN holds exactly the minimalist-line corner of this 12W trio in 120x120 section.
Edge flower beds with 30-40cm uprights, carry main walks with 60-100cm uprights. Edge flower beds and low planting with the 30-40cm uprights so the source stays below the sightline; carry main walks, gates and crossings with the 60-100cm uprights for a wider pool at ankle level. Every LAN height runs the same 12W engine in the same 120x120 section, so mixed heights keep one slim look.
Start at 3 to 4 times bollard height so pools just overlap — about 2.5 to 4 metres for 60-100cm uprights. Stagger the two sides rather than pairing fixtures, and tighten spacing at steps, curves and crossings. A 20m garden walk therefore takes about six LAN 12W uprights in 120x120 section.
Take 2700K beside lawns, planting and seating where warm light flatters foliage and stone; take 4000K for crossings, gates and service runs where neutral white reads cleaner and safer. Both CCTs ship at Ra80 across the LAN 12W series in the same slim 120x120 line.
The LAN is non-dimmable and runs direct on 100-240V mains, so garden circuits need no extra driver or transformer — wire it like any standard outdoor bollard. That mains-ready 12W build in slim 120x120 section is what keeps LAN installs simple for electricians.
Image Gallery
LAN SER in real outdoor projects
