LED DOWNLIGHT · RD SERIES
IRIS-R Recessed Tiltable Downlight
10W-32W · 1400-4400lm · recessed tiltable downlight for boutiques and hotels.
Home / Product / Led Downlight / IRIS-R
IRIS-R recessed tiltable LED downlight for boutiques — recessed trim with 90-degree tilting head.
IRIS-R Recessed Tiltable LED Downlight
RD series · 10W-32W · 90° tilt · CRI90 · 15°/24°/38°/60°
The IRIS-R RD is a recessed tiltable LED downlight for boutiques and hotels, recessing flush into the ceiling and tilting 90 degrees to throw accent light exactly where new displays and feature walls land — one recessed point washes floor and wall.
This adjustable recessed downlight runs 10W to 32W (1400lm to 4400lm) at up to 145lm/W with CRI over Ra90, so this IRIS-R tiltable downlight keeps clothing colors and skin tones true while four beams switch from tight spot to soft wash.
- 10W-32W, 1400-4400lm, up to 145lm/w
- CRI ≥90, 15°/24°/38°/60° beam
- 90° vertical tilt, recessed ceiling mount
- White/Black finishing, cutout Ø55-Ø115
Datasheet
LC-RD full specifications
| LC-RD6499-10W | |
|---|---|
| Model | LC-RD6499-10W |
| Wattage | 10W ±5% |
| Input Voltage | 220-240V |
| Lumen Output | 1400lm |
| Size (Ø x H) | Ø50*70mm |
| CRI | ≥90 |
| Beam Angle | 15°/24°/38°/60° |
| Finishing | White/Black |
| Cutout | Ø55mm |
| LC-RD6500-15W | |
|---|---|
| Model | LC-RD6500-15W |
| Wattage | 15W |
| Input Voltage | 220-240V |
| Lumen Output | 2100lm |
| Size (Ø x H) | Ø71*85mm |
| CRI | ≥90 |
| Beam Angle | 15°/24°/38°/60° |
| Finishing | White/Black |
| Cutout | Ø75mm |
| LC-RD6501-25W | |
|---|---|
| Model | LC-RD6501-25W |
| Wattage | 25W |
| Input Voltage | 220-240V |
| Lumen Output | 3600lm |
| Size (Ø x H) | Ø82*100mm |
| CRI | ≥90 |
| Beam Angle | 15°/24°/38°/60° |
| Finishing | White/Black |
| Cutout | Ø95mm |
| LC-RD6502-32W | |
|---|---|
| Model | LC-RD6502-32W |
| Wattage | 32W ±5% |
| Input Voltage | 220-240V |
| Lumen Output | 4400lm |
| Size (Ø x H) | Ø100*105mm |
| CRI | ≥90 |
| Beam Angle | 15°/24°/38°/60° |
| Finishing | White/Black |
| Cutout | Ø115mm |
Why IRIS-R for Boutiques and Hotels
Recessed single head with a full 90-degree side throw
IRIS-R 90° Tiltable Recessed Downlight for Boutiques
One recessed point swings a full 90 degrees from straight down to sideways — boutique displays move with the season, and fixed downlights cannot follow them. The IRIS-R RD is a recessed tiltable LED downlight for boutiques and hotels whose head swings a full 90 degrees, so one recessed point washes the floor in summer and throws accent light at a new wall display in winter — no refitting, no extra track. For new ceilings that take a cutout choose recessed IRIS-R; if the slab is solid concrete and cannot be cut, see the surface-mounted tiltable downlight for solid ceilings from the same 10-32W family.
Up to 145lm/W with CRI over Ra90 keeps fabrics and skin tones true — aimable light still has to flatter what it hits. Each IRIS-R head pairs up to 145lm/W efficacy with CRI over Ra90, so fabrics read true, whites stay white and skin tones look natural under accent beams.
- 15° for mannequin spots — tight accent on mannequins and logos
- 24–38° for hanging rails and shelves — even wash for rails and shelf runs
- 60° for general fill — soft, even fill between accent points
Guestrooms and checkout queues where people linger rather than look at displays want calm instead: give those zones the fixed anti-glare downlight for lingering zones — for accent see IRIS-R, if comfort see DL01.
One hero product per ceiling point is the IRIS-R rule: a single round trim that disappears into the ceiling and aims anywhere. Counters that need two or three spots from one opening — jewelry cases, watch walls, layered shelf runs — want the grille downlight with double heads for jewelry counters instead, with 350-degree rotation per head. Across the whole store, the full LED downlight range with five series options mixes recessed, surface, grille and fixed heads without mixing light quality.
One recessed IRIS-R point covers floor wash at 0° and wall accent at 90°
| Model | Form | Tilt | Best for |
|---|---|---|---|
| IRIS-R RD | Recessed single head | 90° vertical | Boutique walls & hotel features |
| IRIS-S SL | Surface-mounted head | 90° + 355° rotation | Solid slabs with no cutout |
| GLOW-D DL01 | Recessed fixed head | Fixed, UGR22 | Guestrooms & lingering zones |
| IRIS-G GL | Recessed grille, 1-2 heads | 90° + 350° rotation | Jewelry & multi-point counters |
Size the Light to the Ceiling
Wattage and cutout choices for 2.6–5m boutique and hotel spaces
Four RD heads share one look — pick wattage by ceiling height, not by taste

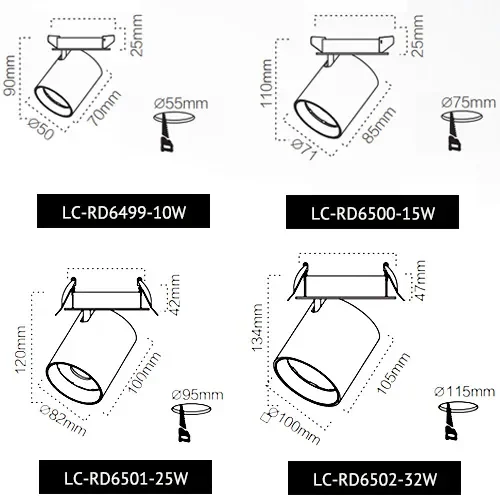

IRIS-R Wattage and Cutout Choices for 2.6–5m Ceilings
Match wattage to ceiling height first.
- 10W head 1400lm cutout 55mm — low boutique corners and fitting-room ends
- 15W head 2100lm cutout 75mm — standard 2.6–3m shop ceilings
- 25W head 3600lm cutout 95mm — workhorse for 3–4m sales floors
- 32W head 4400lm cutout 115mm — reaches 4–5m hotel galleries where throw eats lumens
All four share White/Black finishing, so one ceiling can mix wattages without mixing looks.
Then aim by task, not by ladder. A 15° beam picks out a mannequin or wall logo from the 90-degree tilt, 24–38° washes hanging rails and shelves, and 60° opens up for general fill between accent points. Because every IRIS-R RD head re-aims from below in minutes — tilt toward the new hero wall, twist the beam, done. This gimbal recessed downlight for retail ships exactly this 10–32W range as recessed 90-degree tilt heads.
FAQ
Tiltable recessed downlight answers for commercial projects
Four CCT options from warm to cool white — IRIS-R offers four CCT options from warm to cool white. Warm tones (2700K-3000K) suit hotel rooms and boutiques for a cozy ambience, while neutral to cool tones (4000K-5000K) fit clothing stores and commercial areas needing bright, true-to-life lighting. The IRIS-R RD ships all four CCT options across its 10-32W recessed range.
10W to 32W covers 1400lm to 4400lm in four steps — the series covers 10W to 32W with outputs from 1400lm to 4400lm: 10W (cutout 55mm) for low corners, 15W (75mm) for standard 2.6-3m shop ceilings, 25W (95mm) for 3-4m sales floors, and 32W (115mm) for 4-5m hotel galleries. The IRIS-R RD ships exactly this four-step range as recessed 90-degree tilt heads.
15/24/38/60° covers focal spots and washes from one family — choose from 15° for sharp accent lighting on mannequins and wall logos, 24°-38° for hanging rails and shelf wash, and 60° for wide, even general fill across larger areas. The IRIS-R RD ships exactly this 15/24/38/60° set, so one recessed family covers focal spots and washes.
Up to 145lm/W with Ra>90 from 10W to 32W — it delivers up to 145lm/W high luminous efficacy with Ra>90 color rendering, producing vivid, true-to-life colors while keeping energy consumption low. The IRIS-R RD holds this 145lm/W plus Ra90 combination from the 10W head to the 32W head.
90° vertical tilt aims light without moving the fixture — the 90° vertical tilt lets you aim light exactly where it is needed — highlighting merchandise, wall art, or display shelves — without moving the fixture, adding flexibility that fixed downlights cannot offer. Where 30 degrees of tilt is enough for small counters, a fixed or shallow-tilt head suffices; the IRIS-R RD exists for walls and corners that need the full sideways throw.
White blends into light ceilings, Black contrasts for modern boutiques — White finishing blends seamlessly into light ceilings for a clean, minimal look, while Black finishing creates a bold contrast that suits modern boutiques and stylish commercial interiors. Both IRIS-R RD finishes share the same 10-32W range and 90-degree tilt mechanism.
Factory-direct OEM/ODM customization available — yes, as a factory-direct manufacturer, we support OEM/ODM customization of the IRIS-R RD — including wattage, CCT, beam angle, finishing, and private packaging — with competitive pricing for project and wholesale orders.
One-stop solution from selection to after-sales with 5-year warranty — yes, we provide a one-stop solution from IRIS-R RD product selection and Dialux lighting design to delivery and after-sales support, backed by a 5-year warranty for long-term peace of mind.
