OUTDOOR · MUSH-F SERIES
MUSH-F SER Flat Mushroom Bollard
18W · 2700K/4000K · Ra80 — flat-top mushroom bollard for contemporary garden paths and greenery borders.
Home / Outdoor Luminaires / Mush Path Light / MUSH-F SER
MUSH-F SER with D180 flat cap — crisp downward pools for narrow garden paths
MUSH-F Flat Top Mushroom Path Light
MUSH-F SER · flat-top mushroom garden bollard · 18W · 2700K/4000K Ra80
The MUSH-F SER is a flat top mushroom path light for gardens that presses light straight down from its D180 flat cap, drawing a crisp ring of pools along the paving instead of washing the beds.
This MUSH-F downward path light runs one 18W SMD engine across 9 models at 2700K/4000K Ra80 in a die-cast aluminum body with PC diffuser on 100-240V. Heights run H140mm to H1000mm in Light Grey for low markers, standard walks and tall wayfinders.
- 18W integrated SMD light source
- H140mm–1000mm, 9 models in MUSH-FB and MUSH-FS
- 2700K/4000K, Ra80, precise downward illumination
- Die-casting AL+PC, 100-240V, Light Grey
Datasheet
MUSH-F SER full specifications
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | SMD |
| Finishing | Light Grey |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 351814 18K3/K4 | D180*B110*H140mm | Ra80 | 2700K/4000K | 18W |
| 351838 18K3/K4 | D180*B110*H380mm | Ra80 | 2700K/4000K | 18W |
| 351858 18K3/K4 | D180*B110*H580mm | Ra80 | 2700K/4000K | 18W |
| 351878 18K3/K4 | D180*B110*H780mm | Ra80 | 2700K/4000K | 18W |
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | SMD |
| Finishing | Light Grey |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 361830 18K3/K4 | D180*B110*H300mm | Ra80 | 2700K/4000K | 18W |
| 361840 18K3/K4 | D180*B110*H400mm | Ra80 | 2700K/4000K | 18W |
| 361860 18K3/K4 | D180*B110*H600mm | Ra80 | 2700K/4000K | 18W |
| 361880 18K3/K4 | D180*B110*H800mm | Ra80 | 2700K/4000K | 18W |
| 3618100 18K3/K4 | D180*B110*H1000mm | Ra80 | 2700K/4000K | 18W |
Why MUSH-F for Narrow Paths and Step Edges
Flat-cap cutoff pools that stay on the paving, not in the beds
MUSH-F D180 flat-top crisp pools for narrow paths
Narrow garden paths need guidance without spill. Set this flat-top mushroom garden bollard along one side, staggered 2.5 to 4 metres apart with each post set back by its own height, and the D180 flat cap drops a crisp pool on the paving with a clean cut edge. Low H140mm to H400mm markers suit tight passages and vegetable furrows. The full outdoor luminaire range for garden walkways covers the rest.
MUSH-F versus MUSH-D for crisp edging
Steps are where the cutoff earns its keep: one low post per flight lights the first and final treads, and the restrained beam keeps risers readable without throwing glare uphill into walkers’ eyes. Where the brief wants atmosphere across the planting instead, for soft radiating glow see the MUSH-D dome mushroom bollard with soft glow — and keep MUSH-F for the crisp edging lines.
At garden scale the D180 shade reads slim against planting, unlike square commercial columns: schemes stepping up to driveways and parking rows should weigh the PLAT flat-top square bollard for plazas against this mushroom, since its wide-angle wash suits vehicle areas while MUSH-F stays a pedestrian edging light at 2700K for warm stone and 4000K for legible steps.
- MUSH-F D180 flat top — precise downward pool with restrained spill for narrow paths and steps
- MUSH-D D180 dome — soft radiating glow for garden paths and borders wanting ambience
- PLAT 150mm flat top — wide-angle wash for plazas, driveways and parking rows
Flat cap presses light straight down — crisp path edging with restrained spill
| Model | Cap | Beam | Best for |
|---|---|---|---|
| MUSH-F SER | D180 flat mushroom top | Precise downward pool, restrained spill | Narrow paths, step edges, contemporary walks |
| MUSH-D SER | D180 dome cap | Soft 360° radiating diffuse glow | Garden paths and borders wanting ambience |
| PLAT SER | 150mm square flat top | Wide-angle wash | Plazas, driveways, parking rows |
FAQ
Flat-top bollard answers for narrow path projects
The flat cap presses 18W straight down for one post, one pool, no wash across the flowers. Where dome and wide-eave caps throw light sideways into the beds, the MUSH-F flat top blocks upward and sideways spill and presses the 18W SMD output straight down, so each post draws a crisp, separate pool with a clean edge on the paving. That makes it the edging tool of the family: one post, one pool, no wash across the flowers. The MUSH-F ships exactly this flat-cap 18W range in 9 heights from H140mm to H1000mm under one D180 shade.
Choose by what should glow — dome for beds, flat top for crisp step pools. If the planting beds should glow too, pick the dome: its wide spill dresses paving and flowers in one wash for evening atmosphere. If the brief is a contemporary walk where each step lands in its own clean pool and the beds stay dark, pick the flat top: the MUSH-F cap holds a tight downward pool with restrained spill for narrow paths and step edges. Both share the same 18W D180 platform, so mixed schemes stay visually calm.
Take H140mm to H400mm for narrow paths, H580mm for garden walks, H780mm to H1000mm for open entries. Take low H140mm to H400mm markers for narrow paths and step sides, H580mm to H600mm for standard garden walks, and H780mm to H1000mm for open entries where the post must read from farther away. Run one side only, staggered about 2.5 to 4 metres apart with each post set back from the edge by roughly its own height, and pull spacing tighter beside steps so the first and final treads each sit in light. The MUSH-F covers that whole ladder in 18W with the same D180 flat cap on all 9 models.
18W reads as guidance, not floodlight, because the flat cap cuts the beam at the paving. 18W sits in the standard commercial bollard band, and on a narrow path it reads as guidance rather than floodlight because the flat cap cuts the beam off at the paving instead of throwing it wide. For CCT, 2700K warms stone and planting for evening calm, while 4000K keeps step nosings and path joints crisply legible. Every MUSH-F ships both CCTs at Ra80 in 18W under the D180 flat cap.
Yes, it is a permanent wired fixture: a die-cast aluminum body with PC diffuser on 100-240V, non-dimmable, finished in Light Grey for garden and landscape duty. Anchor the base, wire it once, and leave it out through every season — no stake to heave, no battery to swap. The MUSH-F pairs that permanent 18W build with the D180 flat cap in all 9 models.
At about 3 metres per post, a straight 15-metre run takes 5 bollards on one side; then add one extra post at each step flight so the first and last treads never fall in a dark gap. Because each flat-top pool stays tight, a single-sided run is enough for paths under about a metre wide — there is no sideways wash to borrow from the far side. The MUSH-F keeps one 18W D180 look across all of them, so mixed heights stay visually calm.
Image Gallery
MUSH-F SER in real garden projects

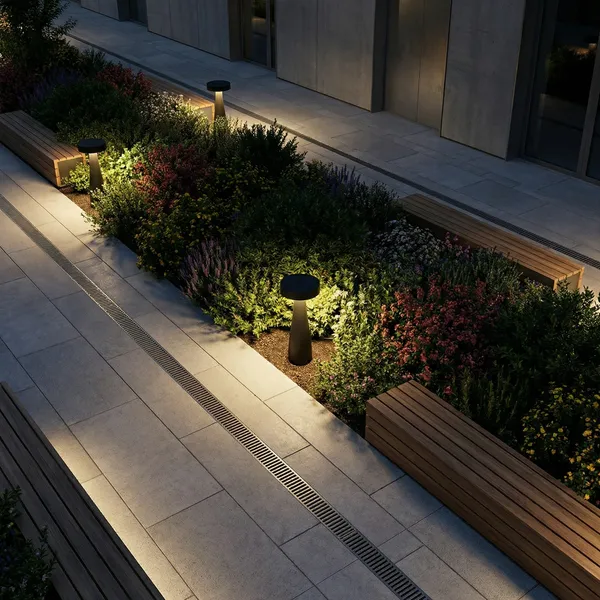

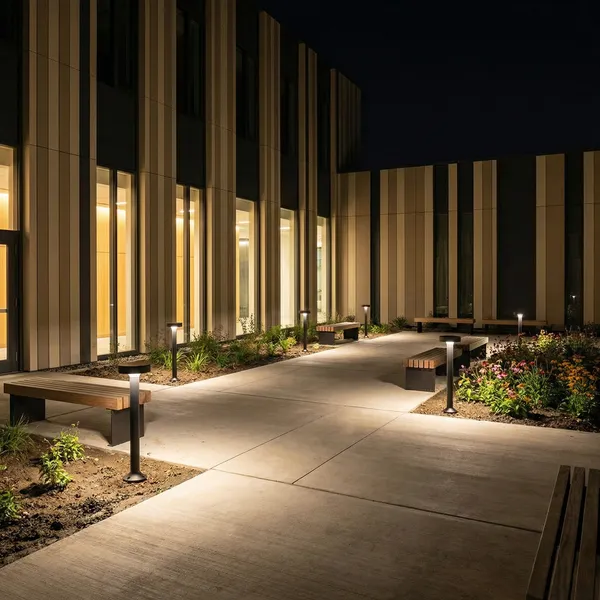

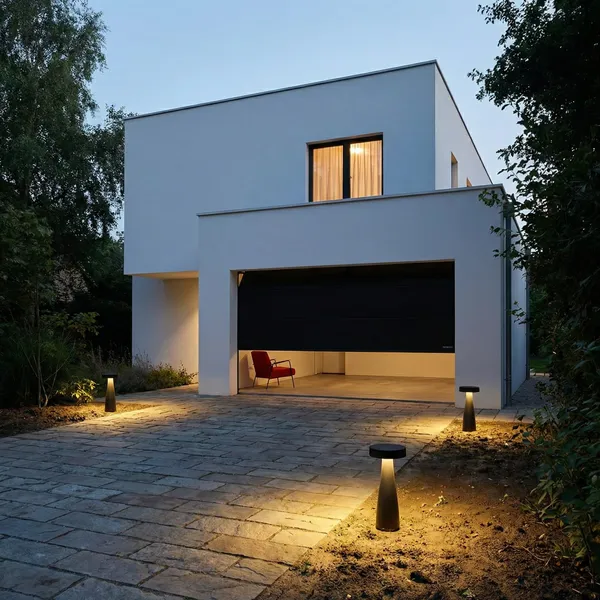

MUSH-F flat-top bollards edging narrow paths and step sides in real projects
