OUTDOOR · PLAT SERIES
PLAT SER Flat-Top Bollard
12W · 2700K/4000K · Ra80 — modern flat-top bollard for office plazas, driveways and parking areas.
Home / Outdoor Luminaires / Led Bollards Light / PLAT SER
PLAT plaza pathway light — flat-top square head on a 150x150mm commercial column
PLAT Flat Top LED Bollard Light
PLAT SS / PLAT SR · 12W SMD · 150x150mm square · 2700K/4000K Ra80
The PLAT is a flat top LED bollard for plazas and parking, built as a 150x150mm square column with a flat cap that throws a wide-angle wash across paving, driveways and parking rows.
This flat-top square commercial bollard runs a 12W SMD head at 2700K or 4000K with Ra80, shipping as ten models across the PLAT-SS and PLAT-SR families from 30cm to 100cm for office plazas, driveways and parking areas.
- 12W integrated SMD light source
- Heights 30cm–100cm, 10 models in 2 families
- 2700K/4000K, Ra80, wide-angle illumination
- Die-casting AL+PC, 100-240V, Sand Black/Sand Gray
Datasheet
PLAT SER full specifications
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | SMD |
| Finishing | Sand Black/Sand Gray |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 4611530 12K3/K4 | 150*150*300MM | Ra80 | 2700K/4000K | 12W |
| 4611540 12K3/K4 | 150*150*400MM | Ra80 | 2700K/4000K | 12W |
| 4611560 12K3/K4 | 150*150*600MM | Ra80 | 2700K/4000K | 12W |
| 4611580 12K3/K4 | 150*150*800MM | Ra80 | 2700K/4000K | 12W |
| 46115100 12K3/K4 | 150*150*1000MM | Ra80 | 2700K/4000K | 12W |
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | SMD |
| Finishing | Sand Black/Sand Gray |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 4621530 12K3/K4 | 150*150*300MM | Ra80 | 2700K/4000K | 12W |
| 4621540 12K3/K4 | 150*150*400MM | Ra80 | 2700K/4000K | 12W |
| 4621560 12K3/K4 | 150*150*600MM | Ra80 | 2700K/4000K | 12W |
| 4621580 12K3/K4 | 150*150*800MM | Ra80 | 2700K/4000K | 12W |
| 46215100 12K3/K4 | 150*150*1000MM | Ra80 | 2700K/4000K | 12W |
Why PLAT for Plazas and Parking
A square commercial column, not a garden ornament
PLAT Square Column for Plaza Architecture
Plazas and parking areas need a bollard that reads as architecture, not garden decor. The PLAT is a flat-top square commercial bollard built around a 150x150mm section with a flat cap that throws a wide-angle wash across paving, so office forecourts and parking rows get even ground light from a fixture with real daytime presence. It anchors the commercial end of the full outdoor LED bollard range for plazas, alongside path and wall lights.
PLAT Plaza Height Selection by Task
Office plazas, driveways and parking bays share one problem: pedestrians and slow cars using the same lanes after dark. A 30-100cm PLAT column puts 12W of SMD light at knee level, marking routes without the glare of a pole head. For garden mushroom flat-top paths see the MUSH-F mushroom bollard for residential gardens — if the job is plaza or parking paving, stay with PLAT.
- 30-40cm heads — edge steps and ramps with low wash;
- 60cm column — marks walkways at knee level;
- 80-100cm columns — carry driveways and parking rows with longer throw.
Sites that mix bollard rows with planted borders pair this PLAT plaza pathway light with the SEMI heavy-duty pathway light for planting, keeping one matter-of-fact commercial language across hardscape and greenery.

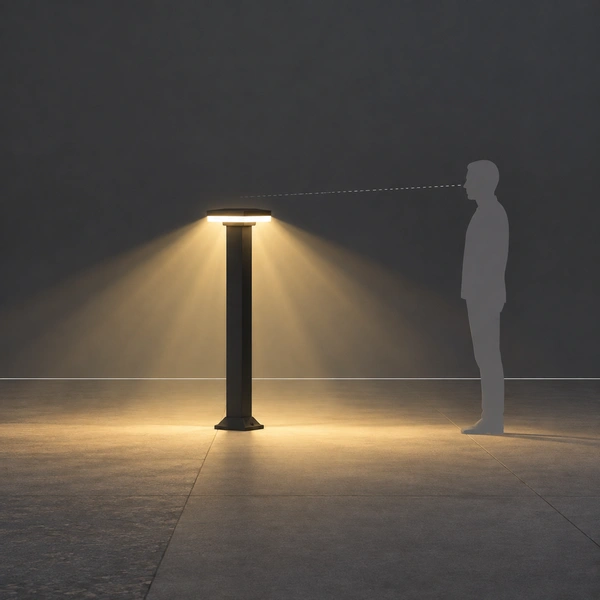

Flat cap pushes a wide-angle wash onto paving — light stays low, glare stays down
| Model | Section | Top | Best for |
|---|---|---|---|
| PLAT-SS | 150x150mm square | Flat cap, commercial wash | Office plazas, driveways |
| PLAT-SR | 150x150mm square | Flat cap, twin-family variant | Parking rows, wide paving |
| MUSH-F | Slim mushroom | Flat-top mushroom cap, garden glow | Residential gardens, greenery borders |
FAQ
Flat-top bollard answers for plaza and parking projects
Three things in one square column: a 150x150mm section with real daytime presence, a flat cap that throws a wide-angle wash across paving. And a 12W SMD head that marks routes without pole-head glare. The PLAT ships exactly this commercial range as 12W heads on a 150x150mm section, 30-100cm tall.
Pick by installed base, not by performance. Both families share the same 12W SMD head, 150x150mm section, 2700K/4000K Ra80 and 30-100cm heights, differing only in the 461 versus 462 model prefix. Match whichever prefix is already on site so spares stay simple. Either way the PLAT ships the same 12W head on the same 150x150mm square column.
Pick by setting, not by cap shape — both wear a flat top. The MUSH-F is a slim 18W mushroom for residential garden paths and greenery borders; the PLAT is a 150x150mm square commercial column with a wide-angle wash for plazas, driveways and parking. For garden mushroom flat-top see MUSH-F; if the job is plaza or parking paving, the PLAT 12W square column is the one.
Take 30-40cm for steps and ramps, 60cm for walkways, and 80-100cm where driveways and parking rows need longer throw. Taller columns reach further, so height matters more than wattage here. Space commercial walkway heads about 2.5-4m apart for overlap without dark gaps, then confirm against the site lighting plan. The PLAT covers all of it with 12W heads on 150x150mm columns from 30cm to 100cm.
Warm 2700K flatters hotel forecourts and hospitality plazas; neutral 4000K gives crisper facial and plate recognition on commercial driveways. And parking rows. Both ship at Ra80, so finishes and planting still read true. Tell us the setting with your PLAT 12W order and we match the CCT to the 150x150mm column before shipment.
No — the flat cap pushes light downward in a wide-angle wash that stays on the paving. Instead of outward into drivers' and pedestrians' eyes, the same full-cutoff idea commercial sites use to cut spill and sky glow. Keep heads at knee level and spacing even, and the PLAT 12W square column lights the route without lighting up windscreens.
