OUTDOOR · OBEL-A SERIES
OBEL-A Square Acrylic Top Column Light
7W · 2700K/4000K · Ra80 — square acrylic top bollard for plaza perimeters and residential driveways.
Home / Outdoor Luminaires / Led Bollards Light / OBEL-A

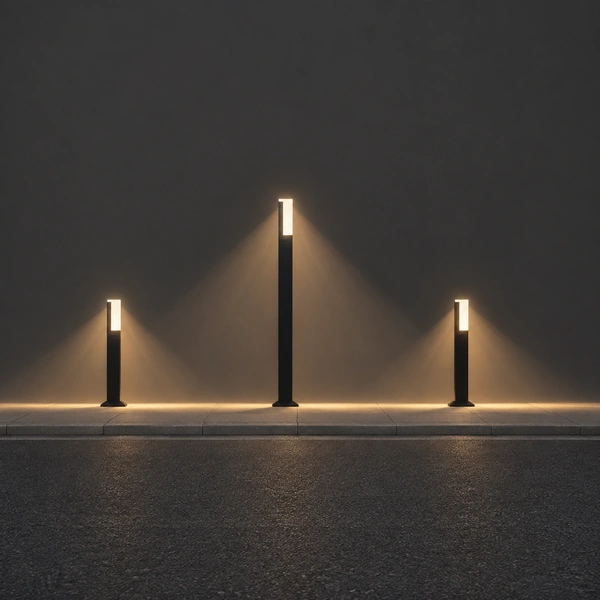

OBEL-A luminous crown glowing at dusk — the acrylic top reads as a marker bead on the 50mm post

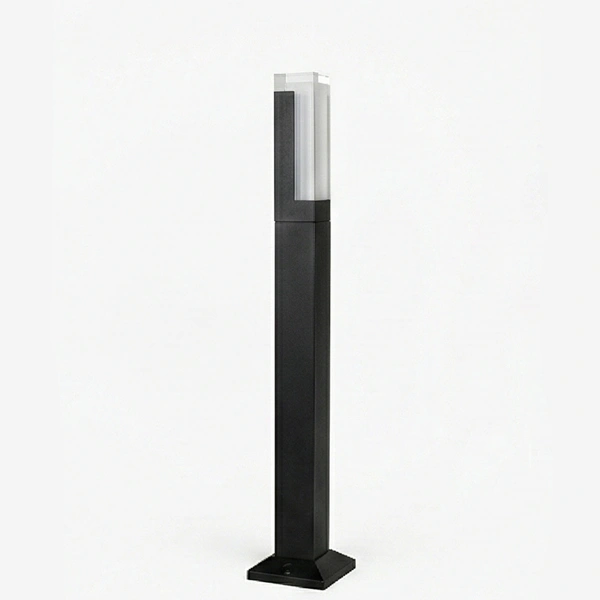

OBEL-A Acrylic Top LED Column Bollard
OBEL-A slim column light · 7W COB · 50x50mm post · 2700K/4000K Ra80
The OBEL-A is an acrylic top LED column bollard for driveways and plaza perimeters: a 50x50mm slim column crowned with a luminous acrylic top, so the post itself reads as a line of light after dark.
This luminous crown plaza bollard runs a 7W COB at 2700K or 4000K with Ra80, in five heights from 300mm to 1000mm. The die-cast aluminum and PC body in Black or Grey wires to a 100-240V non-dimmable supply for estate and hospitality edging.
- 7W COB light source, non-dimmable
- 50x50mm post, 300mm-1000mm, 5 models
- 2700K/4000K, Ra80, luminous acrylic crown
- Die-casting AL+PC, 100-240V, Black/Grey
Datasheet
OBEL-A full specifications
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | COB |
| Finishing | Black/Grey |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 470530 12K3/K4 | 50*50*300MM | Ra80 | 2700K/4000K | 7W |
| 470540 12K3/K4 | 50*50*400MM | Ra80 | 2700K/4000K | 7W |
| 470560 12K3/K4 | 50*50*600MM | Ra80 | 2700K/4000K | 7W |
| 470830 12K3/K4 | 50*50*800MM | Ra80 | 2700K/4000K | 7W |
| 4705100 12K3/K4 | 50*50*1000MM | Ra80 | 2700K/4000K | 7W |
Why OBEL-A for Plaza Perimeters and Driveways
The slim column whose luminous crown is the marker
OBEL-A Luminous Crown for Plaza Perimeters
Plaza edges need order after dark, not floodlight glare. The OBEL-A works as a luminous crown plaza bollard: its acrylic top glows along the perimeter so pedestrians read the boundary line itself, while the 50x50mm post almost disappears between planters and paving joints. It sits inside the full LED bollard light range for plazas and driveways as the marker-column option.
OBEL-A Driveway and Accent Bollard Selection
Residential driveways follow the same edging logic at a lower height: 600 to 800mm posts spaced 3 to 5 metres apart keep cars on the paving without throwing light into bedroom windows. Where the job is to aim light at a sign, gate pier or planting bed instead of marking a line, for aimed accent see the BAM directional spot bollard for entrances; if a luminous perimeter marker is the brief, stay with OBEL-A.
- For aimed accent — see BAM spot head for signs, gate piers and planting beds;
- For ground wash — see SEMI 360° pool for garden walkways;
- For luminous marker — keep OBEL-A crown glowing as the wayfinding bead.
Ground wash is a third job and it belongs to a different optic. The SEMI heavy-duty pathway bollard for gardens throws a 360° pool onto walkways, while OBEL-A keeps its glow in the crown as a wayfinding bead. In short: for aimed accent see BAM, for path wash see SEMI — if the column itself must glow as the marker, see OBEL-A.
A row of glowing crowns marks the edge — the 50mm posts stay visually quiet
| Model | Head | Light role | Best for |
|---|---|---|---|
| OBEL-A | Luminous acrylic crown | Post glows as a marker bead | Plaza perimeters, driveway edging |
| BAM | Aimed spot head | Directional accent beam | Signs, gate piers, planting |
| SEMI | Diffused 360° head | Ground pool wash | Garden paths, walkway pools |
Image Gallery
OBEL-A in plaza perimeter and driveway projects
FAQ
Luminous crown bollard answers for driveways and plazas
A capped bollard hides its source under an opaque hat and throws light down at the ground. The OBEL-A does the opposite: its translucent acrylic top glows, so the head itself becomes a marker bead that pedestrians can follow along a plaza edge or driveway. The OBEL-A ships exactly this crown-top 7W range on the 50x50mm post.
Match height to the job: 300-400mm for low flower-bed edging, 600-800mm as the standard residential driveway marker. And 1000mm for plaza perimeters and commercial entries where the crown must read over a crowd. All five heights share the same 7W COB and 50x50mm slim section, so a mixed run keeps one look. The OBEL-A covers exactly this 300-1000mm choice at 7W on the 50mm post.
Space driveway posts 3 to 5 metres apart for a continuous edge line. And close to 2 to 3 metres only where a brighter decorative rhythm is wanted. Wider gaps leave dark breaks between crowns; tighter runs waste budget and glare at drivers. The OBEL-A 7W crown is sized for exactly this 3-5m marker spacing on the 50mm post.
Acrylic is the right lens plastic for a glowing crown: it transmits about 92% of visible light. It resists outdoor yellowing far better than uncoated polycarbonate, and carries a harder scratch-resistant surface that wipes clean with a soft damp cloth. Avoid abrasive pads and solvents on the crown. The OBEL-A pairs this acrylic crown with a die-cast 7W body on the 50mm post.
Pick 2700K for brick driveways, planting beds and hospitality terraces where a warm welcome matters. And 4000K for commercial plazas and pale paving where crisp edge definition matters. Both ship at Ra80 across the series, so finishes render honestly either way. Every OBEL-A height carries both CCT options on the same 7W 50mm platform.
The series wires straight to 100-240V mains with no external driver box. And it is non-dimmable — on/off switching only, typically via a timer or photocell circuit. The die-cast aluminum and PC housing comes in Black or Grey for estate and hospitality schemes. The OBEL-A holds this 100-240V non-dimmable 7W setup across all five 50mm-post heights.
