OUTDOOR · PORT SERIES
PORT SER Modern Arched Bollard
7W · 2700K/4000K · Ra80 — modern arched COB bollard for garden pathways and commercial courtyards.
Home / Outdoor Luminaires / Free-Form Garden Light / PORT SER

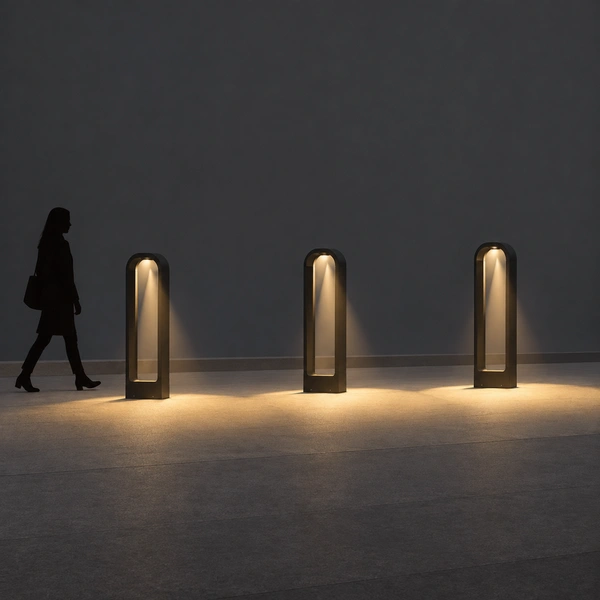

PORT 7W hollow-arch bollard guiding a courtyard walkway at dusk
PORT Arched LED Landscape Bollard
PORT-CO / PORT-CS · 160x53mm hollow arch · 7W COB · 2700K/4000K Ra80
The PORT is an arched LED landscape bollard for courtyards that draws a walking line instead of a spotlight: a 160x53mm hollow arch in die-cast aluminum carries a 7W COB behind PC, washing garden pathways and commercial courtyards with a soft 2700K/4000K Ra80 glow.
Ten heights from 300mm to 1000mm split into two families, PORT-CO and PORT-CS, so a low garden edge and a tall courtyard walk can share one arch silhouette garden bollard from 100-240V in Black or Grey.
- 7W integrated COB light source
- Heights 300mm–1000mm, 10 models in 2 families
- 2700K/4000K, Ra80, soft inviting glow
- Die-casting AL+PC, 100-240V, Black/Grey
Datasheet
PORT SER full specifications
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | COB |
| Finishing | Black/Grey |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 5511630 6K3/K4 | 160*53*300MM | Ra80 | 2700K/4000K | 7W |
| 5511640 6K3/K4 | 160*53*400MM | Ra80 | 2700K/4000K | 7W |
| 5511660 6K3/K4 | 160*53*600MM | Ra80 | 2700K/4000K | 7W |
| 5511680 6K3/K4 | 160*53*800MM | Ra80 | 2700K/4000K | 7W |
| 55116100 6K3/K4 | 160*53*1000MM | Ra80 | 2700K/4000K | 7W |
| Material | Die-casting AL+PC |
|---|---|
| Voltage | 100-240V |
| Dimming type | Non-dimmable |
| Light Source | COB |
| Finishing | Black/Grey |
| PRODUCT | DIMENSION | CRI | CCT | POWER |
|---|---|---|---|---|
| 5521630 6K3/K4 | 160*53*300MM | Ra80 | 2700K/4000K | 7W |
| 5521640 6K3/K4 | 160*53*400MM | Ra80 | 2700K/4000K | 7W |
| 5521660 6K3/K4 | 160*53*600MM | Ra80 | 2700K/4000K | 7W |
| 5521680 6K3/K4 | 160*53*800MM | Ra80 | 2700K/4000K | 7W |
| 55216100 6K3/K4 | 160*53*1000MM | Ra80 | 2700K/4000K | 7W |
Why PORT Guides Courtyard Walk Lines
A hollow arch silhouette that leads feet, not eyes
PORT Hollow Arch Guides Courtyard Walks
Commercial courtyards fail when every fixture shouts for attention. The PORT-CO courtyard light is an arch silhouette garden bollard: its 160x53mm hollow frame reads as a dark arch by day and a soft low glow after dark, so a row of PORTs becomes one guiding line instead of scattered dots. It belongs to the Free-Form garden light range for outdoor projects, where it plays the guide role.
PORT Courtyard Spacing and Height Zoning
That guide role is the opposite of a sculpture light. For glowing sculpture see the ORB glowing ring sculpture for Zen gardens — a halo people stop and look at — if guiding a courtyard line see PORT, whose arches people walk past without stopping. Set PORTs 3 metres apart on busy walks and up to 5 metres apart on quiet ambience walks, so pools just touch.
- 300-600mm arches — edge garden pathways and lawn borders;
- 800-1000mm arches — hold the line of hotel and office courtyard walks;
- GOOS-S sculptural pause — one lawn sculpture gives direction plus destination.
Height does the zoning: 300-600mm arches edge garden pathways and lawn borders, 800-1000mm arches hold the line of hotel and office courtyard walks. Pair the walk line with one sculptural pause, such as the GOOS-S swan-inspired sculptural garden accent light on the lawn, and the courtyard gets both direction and destination from a single 7W COB platform at 2700K/4000K Ra80.

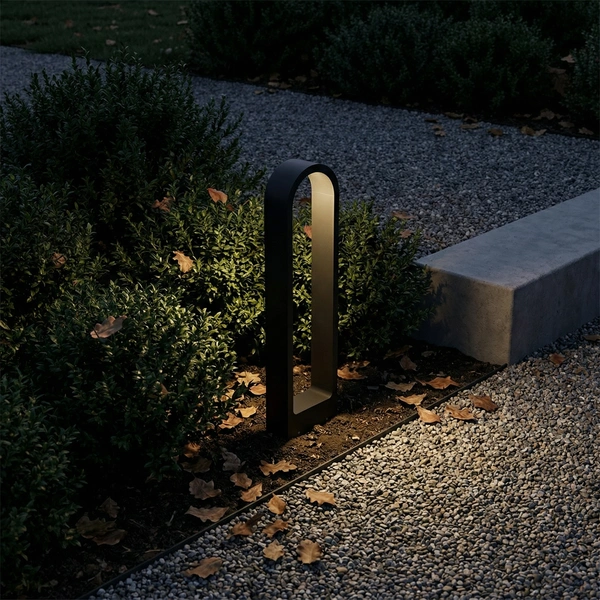

Hollow arches in a row read as one line — feet follow, eyes rest
| Model | Form | Light role | Best for |
|---|---|---|---|
| PORT-CO | 160x53mm hollow arch, 300-1000mm | Guides feet along the walk | Courtyard walk lines, garden pathways |
| PORT-CS | 160x53mm hollow arch, 300-1000mm | Guides feet along the walk | Same walks, second ordering family |
| ORB SER | Glowing halo ring / arch | Holds eyes as garden sculpture | Zen gardens, patios, art walkways |
FAQ
Arched bollard answers for courtyard and garden path projects
Ordinary bollards are bright posts you notice; the PORT is a 160x53mm hollow arch you walk past. Its open silhouette stays a quiet dark frame by day and a soft low glow at night, so a row of them reads as one guiding line for commercial courtyards and garden pathways. The PORT ships exactly this guiding-arch effect as a 7W COB in the 160mm-wide hollow frame.
Pick by project paperwork, not by light. PORT-CO (551 series) and PORT-CS (552 series) share the identical platform — 7W COB, 160x53mm arch, 2700K/4000K Ra80, five heights from 300mm to 1000mm, 100-240V in Black or Grey. Order one family per phase or mix both along one walk; the glow matches either way. Both families ship exactly this shared 7W COB in the 160mm-wide hollow arch.
Ask whether people should walk or stop. For glowing sculpture see ORB — a halo ring that holds the eye as garden art — if guiding a courtyard line see PORT, whose hollow arches lead feet without demanding attention. Many courtyards use both: PORT rows along the walk, one ORB as the destination. The PORT side of that pair ships exactly as a 7W COB in the 160mm-wide guiding arch.
Follow the use, not a fixed number: about 3 metres apart where foot traffic is busy so pools overlap with no dark gaps. Up to 5 metres apart for quiet ambience walks where a dotted rhythm is enough. Taller 800-1000mm PORTs can sit slightly wider than low 300mm ones. Tell us the PORT heights plus the path length and we space the 7W COB arches so the 160mm-wide frames form one unbroken line.
Warm 2700K flatters hotel courtyards, restaurants and garden edges where people linger. Neutral 4000K suits office walks and entrances where faces and steps must read clearly. Both ship at Ra80 on the same 7W COB, so you can even run 2700K PORTs in seating bays with 4000K PORTs at crossings. Either CCT ships exactly in the PORT 7W COB with its 160mm-wide hollow silhouette.
Low 300-600mm arches edge garden pathways and lawn borders with an intimate glow. Tall 800-1000mm arches hold the line of hotel and office courtyard walks where a wider pool is needed. All ten models share the same 160x53mm arch head, so mixed heights along one project stay visually calm. Every height ships exactly this 7W COB in the 160mm-wide PORT arch.
