LED LINEAR LIGHT · LL1614 SERIES
LINA-K Continuous Run Linkable Light
10 fixtures · 168cm · 6600lm — continuous run linkable linear light for malls and boutiques, steel wire suspended.
Home / Product / Led Linear Light / LINA-K

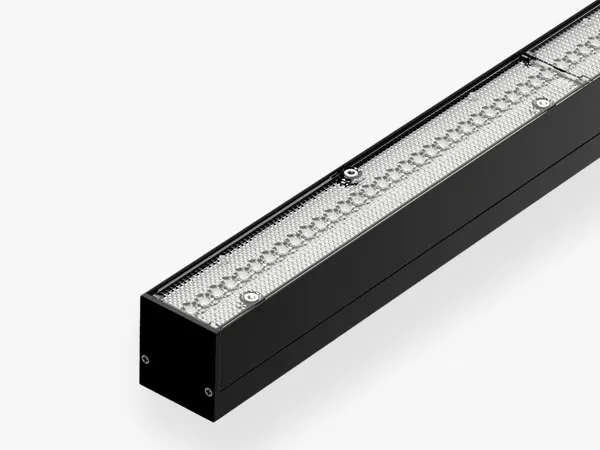

LINA-K Continuous Run Linkable LED Linear Light
linkable LED linear light for shops — suspended linkable linear light
The LINA-K continuous run linkable LED linear light for malls is a suspended linkable linear light that links up to 10 fixtures in one wire for a seamless line. This CCT and power selectable LED linear track light TRON-N sibling shares the same 20-40W DIP scale, while this continuous run linkable linear light uses 168cm housings for open ceilings.
Delivering up to 6600lm at 170lm/W with UGR<22, PF>0.9 and steel wire suspension, this ultra slim 8mm TRON-W linear track light covers track spots and the adjustable dual-panel LED track panel light PANE-P covers shelf aisles; the linkable LED linear light for shops hangs in malls, stores and boutiques from the LED Linear Light range for retail.
- 20W-40W DIP selectable, MAX6600lm ±5%
- Up to 170lm/W, CRI ≥80, 90° beam
- Linkable up to 10pcs, steel wire hanging for open ceilings
- UGR<22, PF>0.9, 220-240V AC
Why LINA-K Continuous Run Saves Wiring
continuous run linkable LED linear light for malls — one feed, ten fixtures, seamless line
10 Single Lights vs 1 Continuous Line
Ten standalone linears need ten feeds and leave dark gaps. This linkable LED linear light for shops joins 168cm housings with rigid joiners — one wire, dot-free 16.8m line for malls and boutiques. Feed one 220-240V AC into the first housing, link the rest in series — one wire powers the whole run without extra drivers.
- 10 pcs × 168cm continuous line — scale 1.68m to 16.8m without redesign
- One power feed — fewer wires, cleaner ceiling and 50% faster install

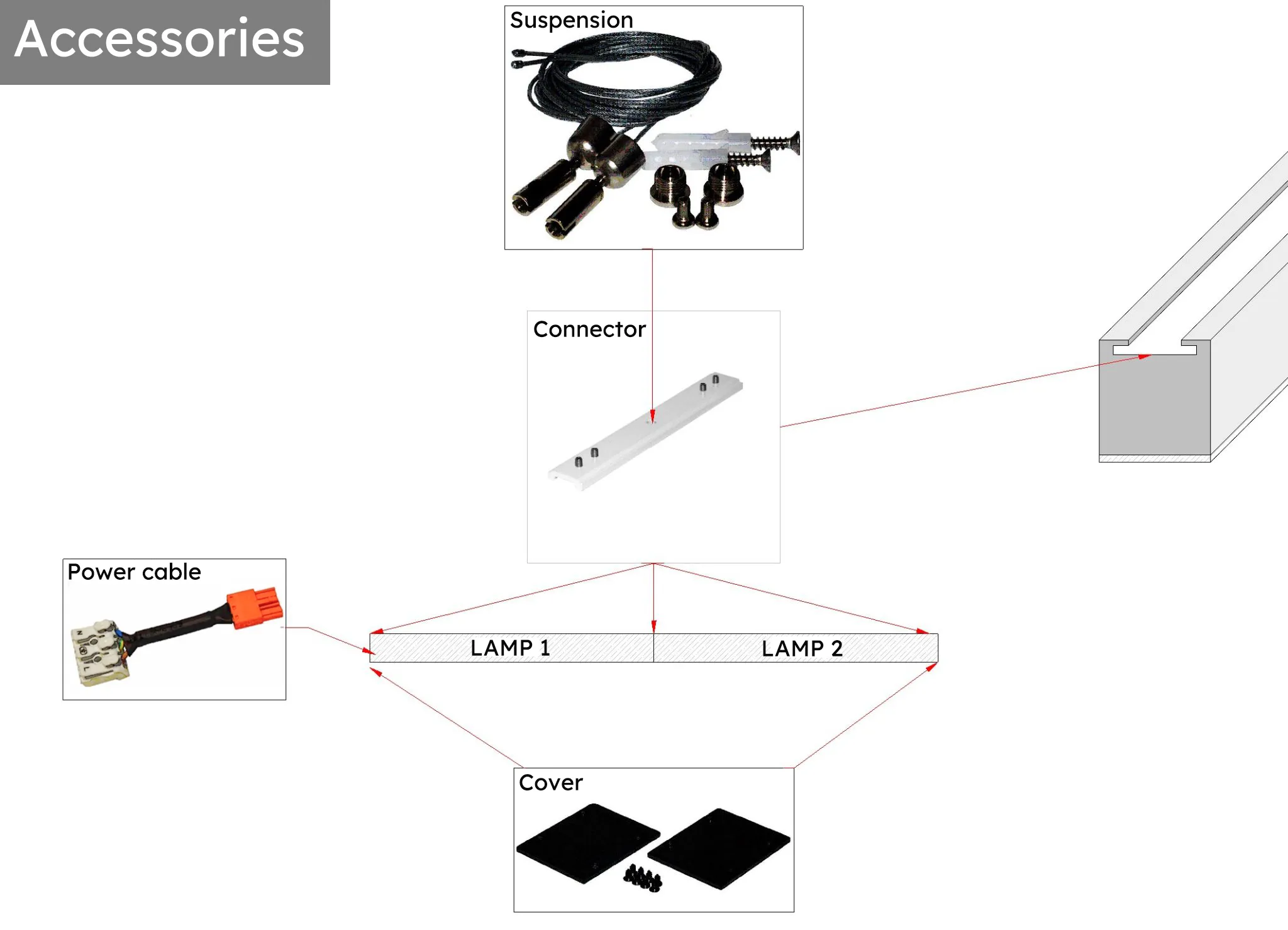

- Rigid joiners + end caps — dot-free line for malls, stores and boutiques, no dark joints
- 168cm per fixture — covers boutique bays to mall corridors with the same run
- DIP 20/30/40W in same housing — one SKU three outputs, up to 6600lm at 170lm/W
One continuous run linkable linear light replaces ten singles — up to 16.8m from one feed.

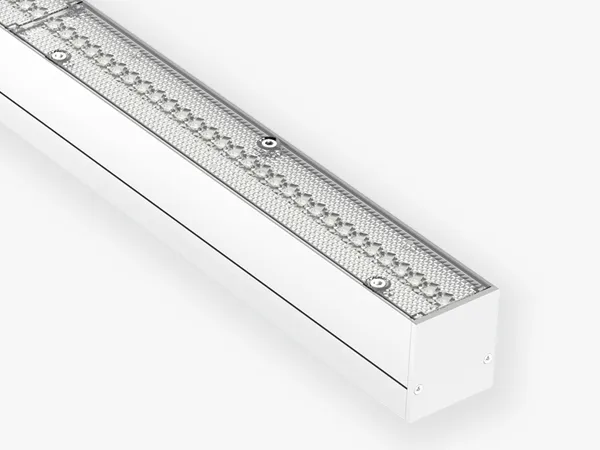

Steel Wire Suspended — Level in Open Ceilings
Grid ceilings need recessed, but malls and convenience stores need open. This suspended linkable linear light hangs by twin steel wires per housing — level, adjustable height, UGR<22 along the whole line. No ceiling grid needed — steel wire suspension is included, so the linkable LED linear light for shops floats cleanly above aisles.
- Suspended kit included — steel wire suspension with adjustable drop for high malls and low boutiques
- Twin wires per 168cm housing — hang, link, then level, whole run stays straight without sag
- UGR<22, 90° beam, CRI≥80, PF>0.9 — comfortable under long continuous runs, stable for 10-fixture line
- White/Black housing — matches shop and boutique interiors, 3–5 year warranty for linked runs
Twin steel wires per housing — suspended linkable linear light levels across open mall ceilings.
Datasheet
LC-LL1614 full specifications
| LC-LL1614 | |
|---|---|
| Model | LC-LL1614 |
| Wattage | 20~40w(DIP) |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | MAX6600 lm ±5% |
| Length | 168cm |
| CRI | ≥80 |
| Beam Angle | 90° |
| Finishing | White/Black |
| PF | >0.9 |
FAQ
Linkable linear lighting answers for retail spaces
A linkable linear light connects multiple fixtures end to end into one continuous run, while a normal linear light works as a single standalone unit. LINA-K supports up to 10pcs linked together, giving you seamless continuous lighting that adapts to different space sizes.
LINA-K hangs by steel wire suspension kits for open ceilings (included as accessories). Simply fix the wires to the structural ceiling, adjust to the desired height, and link the fixtures together for a clean floating line of light.
UGR below 22 means low, comfortable glare for indoor commercial spaces. It keeps staff and shoppers comfortable under long continuous runs of light, which is essential for malls, stores and boutiques.
The built-in DIP switch lets you set the output between 20W, 30W and 40W on site without tools, up to MAX6600lm. This is ideal for:
- Stocking one model — to cover multiple brightness needs
- On-site tuning — to match real lux levels in each zone
- Energy saving — by running only the power you need
Yes — OEM customization is available for project and bulk orders, including:
- Logo — printing on housing or packaging
- Length, housing color and connector — White/Black and plug options
- CCT and wiring — tailored to local market requirements
Feed one main 220-240V AC supply into the first fixture then link the rest in series with the joining connectors (up to 10pcs). Each fixture hangs on its own steel wires, so the whole run stays level and evenly lit.
LINA-K is rated for a 50000-hour lifespan with high-efficacy LEDs (up to 170lm/W) that slow lumen depreciation. We provide a standard 3–5 year warranty plus remote after-sales support for overseas projects.
Application

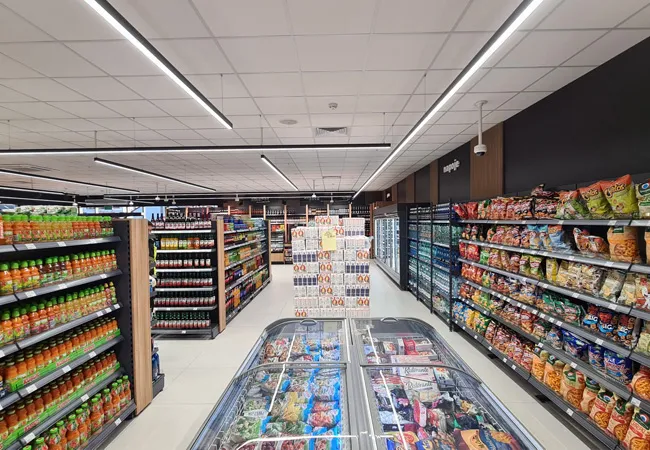

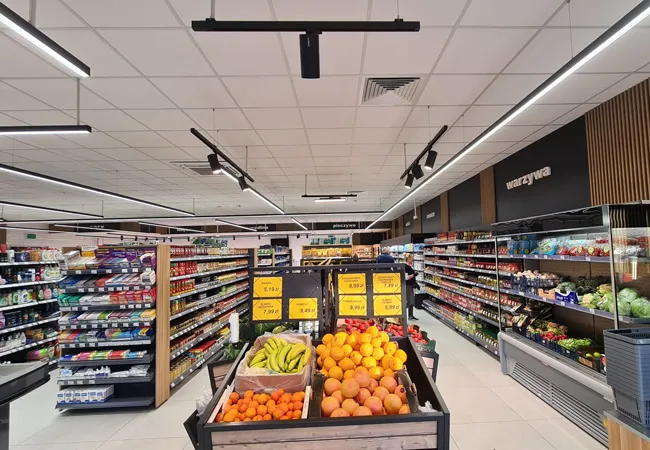

LL1614 linkable lines in malls and stores
