TRON-W LL1616 Ultra Slim LED Linear Track Light
TRON-W · 20-60W DIP · 10000lm · 170lm/W · 8mm ultra slim
The TRON-W LL1616 is an ultra slim LED linear track light 8mm for shops delivering 20-60W DIP-selectable power, up to 10000lm at 170lm/W and only 8mm thickness (excluding driver) in 2ft/4ft/5ft lengths — W70mm narrow profile.
This 8mm slim linear track light replaces bulky battens where ceiling depth is tight: the ultra slim track linear light clicks into a 4-wire 3-phase track and sits almost flush, while the TRON-W linear track light keeps the line continuous across shops and showrooms. For dual-sided aisle lighting from one point, see the PANE-P LL1615 adjustable dual-panel LED track panel light with dual tiltable panels — and for high-bay 13000lm the SOLO-L dual-tube high lumen track light is the alternative for high-bay 13000lm.
- 20W-60W DIP adjustable, up to 10000lm
- 170lm/w efficacy, CRI Ra>80/90
- Only 8mm thick, 2ft–5ft lengths, 90° beam
- 4-wire 3-phase track adapter, White/Black
Explore TRON-W Ultra Slim 8mm Linear Track Light
8mm ultra slim track light for shops, showrooms and offices
The ultra slim LED linear track light 8mm for shops delivers 20-60W DIP, 10000lm at 170lm/W in only 8mm thickness (excluding driver) and 2-5ft lengths W70mm. This 8mm slim linear track light and ultra slim track linear light sits flush on 4-wire track — low glare, high transmittance PMMA, and the TRON-W linear track light covers any shop length.
8mm Ultra Slim Design
8mm thin profile for the TRON-W linear track light in shops
This 8mm slim linear track light disappears into 4-wire track — 8mm thick, lightweight and flush for low shop ceilings.
- Only 8mm thick (excluding driver), W70mm, light weight for easy install
- TRON-W linear track light with integrated driver and DIP 20-60W
- 60° & 90° optics for ultra slim track linear light aisle vs open area
- UGR<22 low glare for shopper comfort in boutiques and malls

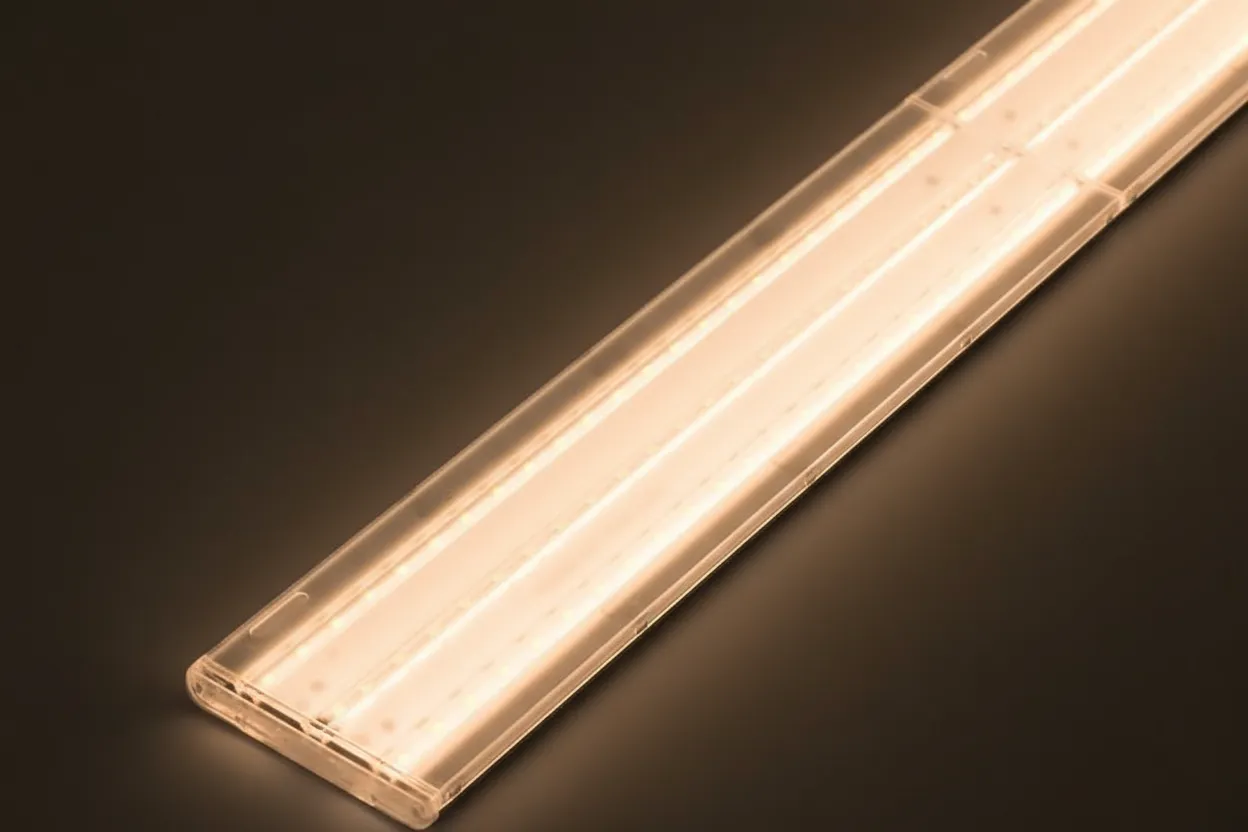

High Transmittance PMMA Lens
Over 90% transmittance for the ultra slim track linear light
The ultra slim track linear light uses anti-aging PMMA lens with over 90% transmittance — more lumens per watt for the 8mm slim linear track light.
- PMMA anti-aging lens, over 90% transmittance for 170lm/W
- TRON-W linear track light up to 10000lm (4000K) from 8mm housing
- 90° uniform optics for shop aisles and showroom general light
- 5-year warranty, low maintenance for high-use retail
DIP Adjustable 20-60W
DIP sets 20-60W — one 8mm slim linear track light for four outputs
The TRON-W linear track light uses integrated driver with DIP 20W/40W/60W and optional CCT — field-selectable for shops and showrooms.
- Field DIP 20-60W without driver swap for ultra slim LED track light
- One SKU covers 2ft/4ft/5ft shop and showroom layouts
- Stock fewer TRON-W housings, cover more bays
- 170lm/W energy efficient for continuous shop lines
Why TRON-W Ultra Slim for Shops and Showrooms
8mm thin — disappears into the track, 170lm/W stays
8mm thin sits flush with 4-wire track; 37mm less protrusion than 45mm batten
Ultra Slim That Earns Ceiling Space
The TRON-W LL1616 is built for ceilings where every millimetre counts: only 8mm thick and W70mm wide, this ultra slim LED linear track light 8mm for shops disappears into a 4-wire 3-phase track while delivering up to 10000lm at 170lm/W. The 8mm slim linear track light weighs less, ships smaller and installs faster than a 45mm batten — and UGR<22 keeps it comfortable for shoppers.
Retail practice confirms the trade: low ceilings and narrow aisles in boutiques and showrooms punish bulky fixtures. That is why an ultra slim track linear shop lighting concept matters — TRON-W is the ultra slim line in that system, while the PANE-P LL1615 adjustable dual-panel LED track panel light handles two-sided aisle wash and SOLO-L handles high-bay 13000lm.
For why linear flexibility beats rewiring when assortments change, see why choose track lighting for retail stores — the track lets you slide, not rewire.
One TRON-W family covers 2ft window to 5ft showroom; DIP covers 20-60W from one SKU
2ft to 5ft — One Family, Any Shop Length
A window needs L600 20W 3300lm; a boutique aisle needs L1200 40W 6500lm; a showroom needs L1500 60W 9500lm — the TRON-W ultra slim track linear light does all three at W70mm with the same 8mm profile and 90° optics. This high efficacy ultra slim linear track light saves watts per lux at 170lm/W and the DIP halves stock: one model, four outputs.
For siblings, compare: the PANE-P LL1615 adjustable dual-panel track panel light trades thinness for dual tilt at 11000lm for supermarket both-sides; the SOLO-L LL1613 high lumen dual-tube track light trades thinness for 13000lm high-bay; the narrow TRON-N LL1617 ultra slim W50 track light trades width for tighter 50mm — choose TRON-W when the brief says 8mm and 2-5ft.
| Model | Thickness | Output | Lengths | Best for |
|---|---|---|---|---|
| TRON-W LL1616 | 8mm | 20-60W · 10000lm · 170lm/W | L600/1200/1500 W70 | Shops / showrooms 8mm flush |
| PANE-P LL1615 | 124mm | 40-70W · 11000lm · 165lm/W | L577 W140 | Supermarket dual-panel both sides |
| SOLO-L LL1613 | 95mm | 60-90W · 13000lm · 150lm/W | L930 W95 | High-bay 3.5-6m |
Datasheet
Select a model to view full specifications
| LC-LL1616-2F | |
|---|---|
| Model | LC-LL1616-2 |
| Wattage | 20W |
| Lumen Output | 3300LM |
| Size | L600*W70mm |
| Beam Angles | 90° |
| Adapter | 4 wires(3phase) |
| Color | White/Black |
| UGR | <22 |
| CRI | Ra>80/90 |
| LC-LL1616-4F | |
|---|---|
| Model | LC-LL1616-4 |
| Wattage | 40W |
| Lumen Output | 6500lm |
| Size | L1200*W70mm |
| Beam Angles | 90° |
| Adapter | 4 wires(3phase) |
| Color | White/Black |
| UGR | <22 |
| CRI | Ra>80/90 |
| LC-LL1616-5F | |
|---|---|
| Model | LC-LL1616-5 |
| Wattage | 60W |
| Lumen Output | 9500lm |
| Size | L1500*W70mm |
| Beam Angles | 90° |
| Adapter | 4 wires(3phase) |
| Color | White/Black |
| UGR | <22 |
| CRI | Ra>80/90 |
FAQ
Quick answers about the LL1616 series
6000K, 4000K and 3000K plus meat color — standard CCT options are 6000K, 4000K and 3000K. A special meat color version is also available for fresh-food displays, making produce look fresher and more appetizing.
DIP adjust from 20W to 60W without tools — the built-in DIP switch lets you adjust the power from 20W up to 60W without external tools. This is ideal for:
- Stocking one model — serve multiple wattage requirements from one SKU
- Field adjustments — tune to real-world lux requirements on site
- Reduced inventory — one purchase for multiple projects
Only 8mm thick excluding driver — the fixture body is only 8mm thick. The ultra-slim profile means super light weight, lower cost, easy installation, and a sleek look that blends seamlessly with various decors.
TRIAC, 0-10V and DALI on request — yes, in addition to its onboard DIP dimming, LL1616 supports TRIAC, 0-10V, and DALI dimming, making the TRON-W ultra slim track light compatible with most smart lighting infrastructures including KNX and Casambi.

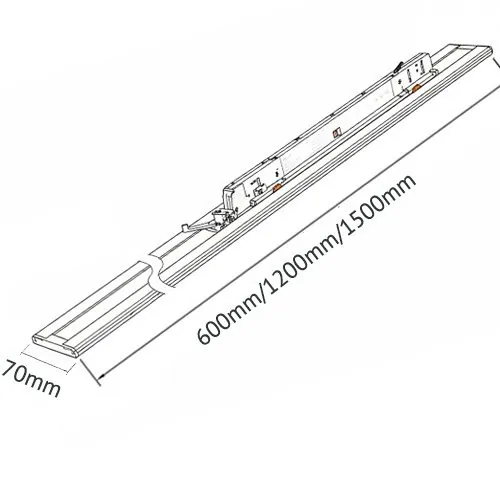

2ft to 5ft with W70mm narrow width — LL1616 covers 2ft to 5ft length options — L600mm (2ft, 20W), L1200mm (4ft, 40W) and L1500mm (5ft, 60W) — all with a slim 7cm width (W70mm), so one series fits shops of different sizes.
Tailored for malls, clothing stores, shops, showrooms and offices — it is tailored for commercial spaces such as shopping malls, clothing stores, shops, showrooms and offices — anywhere that needs stylish, high-efficacy linear lighting with low glare (UGR<22).
4-wire 3-phase track adapter fits Global Trac (Nordic), Eutrac, Stucchi, and most European commercial track systems. Need compatibility with 2 wires and 3 wires? 2 wires 3 wires are also OK for this fixture.
Factory-direct at factory prices — yes, as a factory-direct supplier, we offer LL1616 at factory prices with no middleman markup. Combined with DIP-adjustable wattage (one model for multiple projects) and a 5-year warranty, it keeps both purchasing and maintenance costs low.

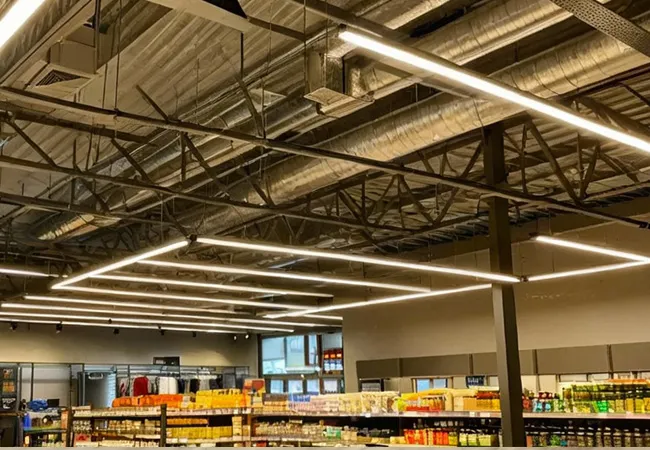

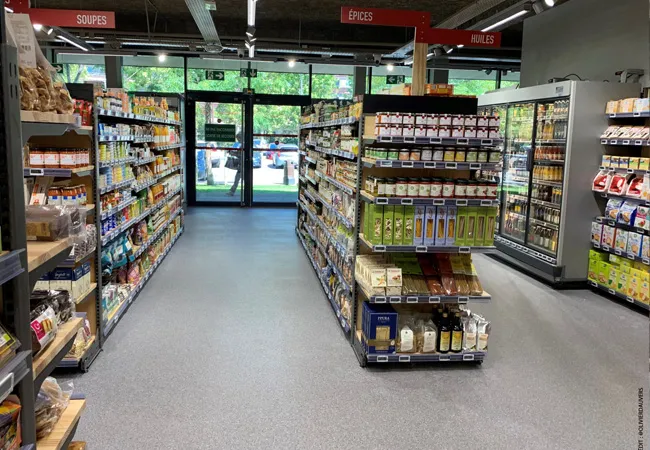

Application
