ZOOMABLE LED TRACK LIGHT · ZT01 SERIES
VARO-Z Zoomable Track Light for Museums
15–60° stepless zoom · Ra90 · 15W/20W/25W — built for museums, galleries and changing exhibitions.
Home / Product / Led Track Light / VARO-Z
VARO-Z ZT01 zoomable LED track light in black finish for museums — 15–60° stepless zoom for galleries and exhibitions.
VARO-Z Zoomable LED Track Light
ZT01 series · 15–60° stepless zoom · CRI90 · 15W/20W/25W
The VARO-Z ZT01 is a zoomable LED track light for museums, with a tool-free 15–60° zoom that shifts the same head from narrow accent to wide flood without changing lenses or reflectors — one head from 15° spot to 60° wall wash.
It offers a maximum power of 25W and up to 2400lm at 145lm/W with >Ra90, making this adjustable beam track spotlight ideal for galleries, exhibitions and changing retail displays, plus a 5-year warranty.
- 15–60° stepless zoom, 145lm/W high efficacy, CRI >Ra90
- 15W / 20W / 25W, up to 2400lm
- 15°~60° zoomable beam angle, White/Black finishing
- 3-phase 4-wire track adapter, 5-year warranty
Datasheet
Select a model to view full specifications
| LC-ZT01-15W | |
|---|---|
| Wattage | 15W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 1450lm ±5% |

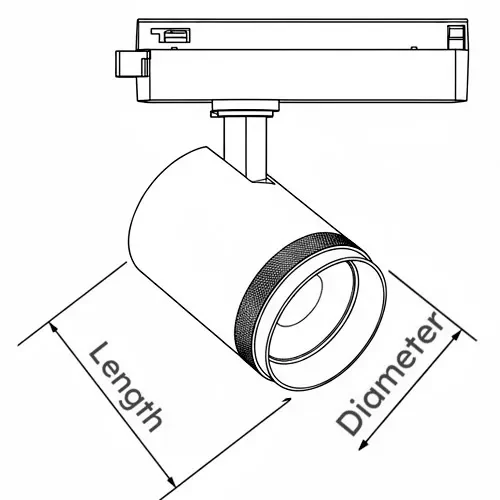

| Size (Ø x H) | D65X98mm |
| CRI | >Ra90 |
| Beam Angle | 15° ~60° (Zoomable) |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
| LC-ZT01-20W | |
|---|---|
| Wattage | 20W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 2000lm ±5% |
| Size (Ø x H) | D75X120mm |
| CRI | >Ra90 |
| Beam Angle | 15° ~60° (Zoomable) |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
| LC-ZT01-25W | |
|---|---|
| Wattage | 25W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 2400lm ±5% |
| Size (Ø x H) | D85X120mm |
| CRI | >Ra90 |
| Beam Angle | 15° ~60° (Zoomable) |
| Finishing | White/Black |
| Adapter | 3-phase 4wire |
Why VARO-Z for Museums and Galleries
One head that zooms from spot to flood without tools
VARO-Z Stepless Zoom for Museum and Gallery Shows
Stepless 15–60° zoom turns one head from tight 15° accent to broad 60° wash — the VARO-Z ZT01 is built for spaces that rehang every season: a stepless 15–60° zoom lens that turns the same head from a tight 15° accent to a broad 60° wash, so a curator can re-aim without stocking multiple optics. At up to 145 lm/W and CRI >Ra90 the beam stays vivid at every zoom position, and the head belongs in a retail and gallery lighting solution that mixes track accent, linear and downlight fixtures in one plan.
Zoom range decides the install more than wattage:
- 15° for sculpture and jewelry focal points — tight pool without flooding surround
- 24–36° for mannequins and shelving — balanced light for bays and retail windows
- 50–60° for wall-wash and artwork bays — wide wash for large canvases and exhibition walls
ZT01 ships exactly that continuous 15–60° range, which is why track lighting suits galleries and retail stores that rearrange exhibits without rewiring.
Color and control close the loop: gallery guides recommend CRI 90+ for artwork, which the Ra90 engine here delivers, while the adjustable beam track spotlight ships TRIAC and 0-10V as standard with DALI on request — DALI being the official DALI Alliance lighting control standard with a standardized dimming curve matched to human-eye sensitivity, so a single potentiometer dim or building DALI bus handles the whole hall.
For changing exhibitions choose VARO-Z; when the layout is fixed and you want the highest lumens per watt per beam, see the fixed-beam alternative — the VUE-S high CRI track light for general retail with 15/24/36° optics, or its fresh-food sibling the VUE-F fresh food track light for supermarkets when the counter needs food spectra instead of zoom.
One VARO-Z head covers spot, medium and flood — twist the front ring at 3m height
| Model | Beam | Efficacy | Best for |
|---|---|---|---|
| VARO-Z ZT01 | Zoom 15–60° | 145 lm/W | Changing exhibitions, galleries |
| VUE-S TR0103 | Fixed 15/24/36° | 145 lm/W | Fixed retail, max output per watt |
| VUE-F TR0102 | Fixed food spectra | 145 lm/W | Supermarket fresh-food counters |
Aim Without Re-hanging
350° rotation and 90° tilt for last-minute exhibition changes
One rail, three zooms — re-aim in minutes when the exhibition changes, with 350° pan and 90° tilt on every head
ZT01 Wattage Choices for Gallery Ceiling Heights
Pick wattage by ceiling height.
- 15W head 1450lm — intimate galleries and 2.5m boutique bays
- 20W head 2000lm — standard 3m exhibitions
- 25W head 2400lm — reaches 4–5m atrium walls
All on the same 3-phase 4-wire track, so a hall can mix wattages without mixing fixture looks.
Stepless zoom replaces lens swaps — 15-60° in one head plus 350° pan and 90° tilt — then tune on site: stepless zoom replaces lens swaps — this adjustable beam track spotlight 15-60° covers spot to wash in one head — the front ring and rear potentiometer dim from 3–100% without an external dimmer, and each head pans 350° and tilts 90° for last-minute rehangs. When the next show needs a different story, this museum gallery zoom track light follows the art, and the VARO-Z zoom spotlight stays on the same rail — not the other way around.
FAQ
Zoom, install, dimming, warranty and more
One head from spot to flood
The ZT01 spans a continuous 15–60° zoom without lens swaps: twist the front ring from a tight 15° sculpture spot to a 60° wall wash. One SKU replaces several fixed-beam housings, cutting stock and re-lamping time for travelling exhibitions.
Museum light quality
Up to 145 lm/W at >Ra90 keeps artworks vivid under precise optics — the beam shape, not spill, does the highlighting.
Narrow 15°: sculpture and focal points
Precise accent for sculpture and jewelry — tight pool without flooding surround — precise accent light for sculpture, jewelry and single exhibits — a tight pool that draws the eye without flooding the surround.
Medium 24–36° to wide 50–60°: bays and walls
Balanced light for artwork bays, shelving and retail windows, up to a 60° wall wash for large canvases and exhibition walls. ZT01 covers the full range in one head, so changing shows need only a zoom twist, not a fixture swap.
Yes — specialized colors including pink meat and bakery spectra available — yes, we have well-developed solutions for specialized colors. For refrigerated and counter food displays see the FLES-M fresh food LED bar light with pink meat and bakery spectra.
Illuminate Freshness, Ignite Cravings
Our LED fresh produce lights use advanced color-blending technology to create stunning lighting effects for your products.
- Boost Product Appeal: professionally customized color schemes for meat, vegetables, bread, and seafood areas.
- Enhance the Look of Freshness: make meat look rich and red, leafy greens vibrant and crisp, bread tempting golden brown, and seafood glisten under clear light.
- Drive Sales: specialized lighting design beautifies your products and stimulates customer desire to buy.
Absolutely. In addition to its onboard potentiometer dimming (3–100%), it supports TRIAC, 0-10V, and DALI dimming (on request), fully compatible with most smart lighting infrastructures, including KNX, Casambi, Lutron, and DALI 2 — handy for dimming gallery halls between day and evening modes.
Choose VARO-Z for rotating exhibits with 15–60° zoom in one head — choose VARO-Z when exhibits rotate and one fixture must cover spot to wall wash — its 15–60° zoom replaces several fixed heads. Choose a fixed-beam light when the layout is permanent and you want the maximum lumens per watt per optic: the VUE-S high CRI track light at 145 lm/W with 15/24/36° fixed optics for retail, or the VUE-F fresh food track light for supermarket counters needing food spectra.
Yes — pans 350° and tilts 90° with tool-free aiming, plus stepless dimming via the rear potentiometer (3–100%). Whether illuminating tall display walls or low vitrines, you can fine-tune each head to the artwork without moving the track itself.
It comes with a standard 3-phase 4-wire track adapter, compatible with Global Trac (Nordic), Eutrac, Stucchi, and most European/Australian commercial track systems. Need compatibility with special systems? Let us know — we can customize adapters.
Standard warranty is 3-5 years. For international clients, we offer spare drivers/LED modules with each shipment and remote troubleshooting support via video or drawings.
