Retail Lighting Solution LED for Supermarkets and Boutiques
This retail lighting solution LED package combines tiltable linear lights, anti-glare downlights and track accent spotlights for supermarkets, boutiques and chain stores. One supplier, one layout, one 5-year warranty: ambient light for aisles, accent light for displays and task light for checkouts, at up to 170lm/W and CRI over Ra90. Compare the full commercial lighting product index before picking fixtures below.
Customer's Most Care
What retail customers care most
Lower Costs
Higher luminous efficacy means lower electricity costs. Our lamps meet ENERGY STAR standards, up to 180lm/w, cutting power expenses, especially for commercial lighting with long operating.
Better Experience
Better color rendering highlights premium product features. Our lights reach up to RA98, close to natural light, boosting shopping experience and purchase desire.
Optical Design
Lower glare enhances shopping experience. Excellent optical design offers tailored UGR solutions for different venues, balancing luminous efficacy and UGR.
High Safety
Strict safety standards with CE, RoHS plus market-specific ones (SAA, PSE). 5-year worry-free warranty, trusted by DIA, Carrefour and more.
Smart Lighting
Adjustable brightness & CCT for different settings. Smart dimming systems deliver greater savings and better experiences.
How to Layer Light in a Retail Store
Ambient, accent and task light — plus a lux table by zone
Three Retail Lighting Layers at 200–500 Lux Ambient
A shop LED lighting solution works in three layers, not one grid. Ambient light sets the base level for aisles, accent light at 2 to 10 times the base pulls eyes to merchandise, and task light serves checkouts and fitting rooms (ConTech Supermarket Lighting Design Guide; BPA retail retrofit guidelines). Keep general sales floors at 200–500 lux, push apparel displays and fresh counters to 500–1000 lux, and hold contrast so signs read at least 3 times brighter than their background.
| Zone | Target illuminance | CCT | CRI rule |
|---|---|---|---|
| General aisles, circulation | 200–500 lux | 4000–4500K neutral | CRI80 is enough |
| Apparel displays, mannequins | 500–1000 lux | 3000–3500K warm | CRI90+, high R9 |
| Fresh counters (meat, bakery, produce) | 500–1000 lux | 2700–3500K warm / cool by zone | CRI90+ on 20–25% of fittings |
| Checkout, fitting rooms | 500–1000 lux at mirror | 3000–3500K flattering | CRI90+ always |
CRI90 Zoning for Fresh Counters With 20–25% High-R9 Fittings
Assign CRI by zone, not by building (Hyperlite CRI 80 vs 90 retail guide, 2025-12; IES light-level tables). Most chains now specify CRI90 only for fresh zones and feature walls — about 20–25% of fittings — and run efficient CRI80 elsewhere, because a well-aimed CRI80 grid with correct CCT beats a poorly aimed CRI90 grid. For open fresh counters choose a fresh food track light with meat and bakery spectra; inside closed refrigerated cabinets use linkable bar lights instead of track heads.
Retrofits rarely need rewiring: keep the existing 3-phase track and swap heads for LED, then add a wireless BLE dimming retrofit without rewiring for 1–100% flicker-free scenes and roughly 30% energy savings. Verify final lux against IES RP-2-20 and local energy code before ordering. For outdoor courtyards, patios and villa landscapes, see our outdoor courtyard lighting solution with bollard spacing and lux tables.
Low-Carbon Solution for Retail
Main lighting, accent lighting and downlights — pick a tab
Main Lighting
LC-LL1615 Tiltable Led Linear Light
PANE-P dual-panel track linear lights washing both sides of a supermarket aisle from one track point. One LC-LL1615 replaces two fixed linears: aim each panel at opposite shelving for even vertical light. See the adjustable dual-panel LED track panel light for DIP power and DALI options.
- 350° rotation plus 90° tilt — covers both sides of an aisle from one track point with aimable panels
- 60° & 90° beam angle — wide wash for vertical shelving without dark gaps
- UGR<22, up to 170lm/w — low glare for long shopping aisles with high efficacy
Main Lighting
Non-Tiltable Led Linear Light, Ultra Slim 8mm
An 8mm flush linear for boutiques and showrooms where the ceiling itself is the design. It sits almost invisible on the track while giving a clean 90° wash over racks. See the ultra slim 8mm linear track light for lengths and DIP settings.
- 30° & 90° beam angle — narrow and wide wash for racks and feature walls
- UGR<22, up to 170lm/w — showroom-grade glare control with high efficacy
Main Lighting

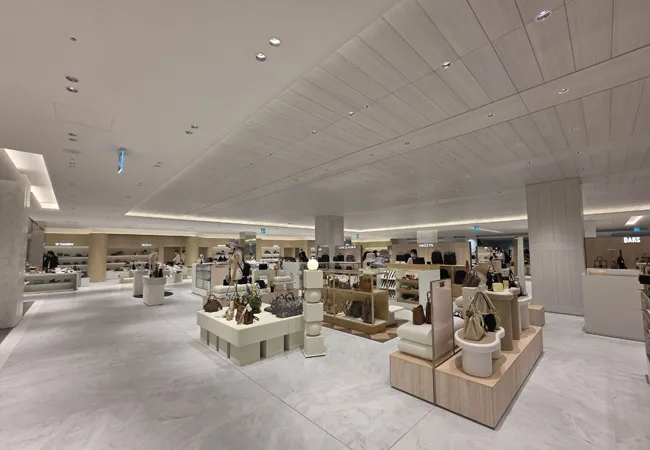

LC-DL01 Downlight
Recessed ambient light for entrances, circulation and dining zones where staff stay under the lights all day. The deep housing keeps UGR under 22 while 38° and 60° beams cover sales floors evenly. See the fixed anti-glare LED downlight UGR22 for sizes and dimming. For wireless refits see the bluetooth mesh dimmable downlight for retail stores. For uniform apparel color see the DL01-HE uniform Ra90 color option for sales floors.
- Anti-glare UGR<22 — deep housing protects staff working under lights all day
- Die-casting casing — thermal-stable build for long retail hours
- 38° & 60° beam angle — even coverage from entrances to dining zones
- 145lm/w Ra90 — efficient color-accurate ambient light
Accent Lighting

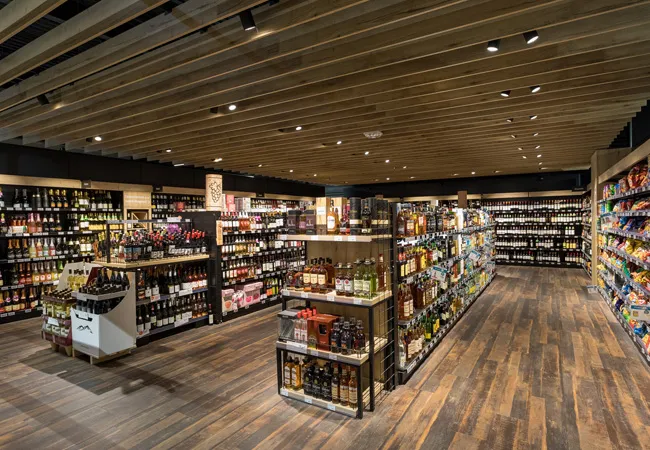

Track Light LC-TR01
Adjustable accent heads for mannequins, feature walls and window displays that change with the season — re-aim without touching the ceiling. The successor series adds CRI90 and DALI dimming. See the high-CRI LED track spotlight VUE-S for beams and dimming.
- 3000K~5000K, meat/food color — tunable white plus dedicated fresh-food spectra
- 350° / 90° adjustable — re-aim by hand when seasonal displays move
- 15~60° beam angle — narrow to wide for mannequins or wall wash
- 145lm/w Ra90 — high-CRI accent with efficient output
Accent Lighting

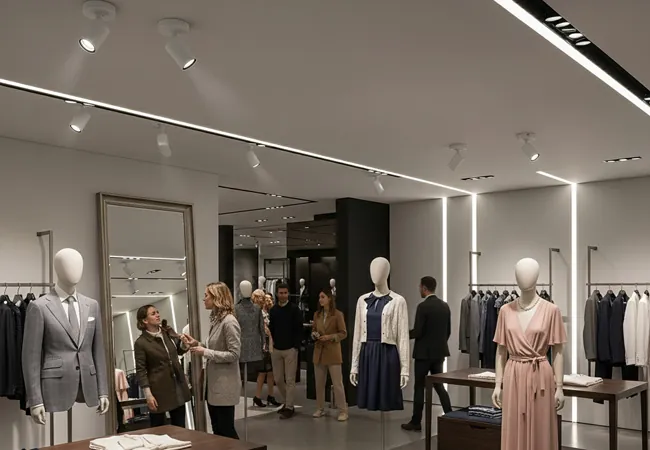

LC-SL Tiltable Downlight
Surface-mounted accent light for solid concrete ceilings where no cutout is possible. It fixes straight on and tilts 90° by hand when shelves move. See the tiltable surface mounted LED downlight IRIS-S for wattages and beams.
- Surface / recessed mounting — fixes straight on concrete, no ceiling cutout
- 350° / 90° adjustable — hand-tilt when shelves and displays move
- 15° / 24° / 38° / 60° beam angle — four optics from spot to wash
- 145lm/w Ra90 — cutout-free accent with efficient color
Which Fixture Goes Where
Power, CRI and beams across the five fixtures
| Fixture | Power & output | CRI & efficacy | Beams | Best for |
|---|---|---|---|---|
| PANE-P LL1615 dual-panel linear | 40–70W DIP, 11000lm | Ra80/90, up to 170lm/W | 60°/90°, ±90° tilt | Supermarket aisles, both sides from one point |
| TRON-W LL1616 ultra slim linear | 20–60W DIP, 10000lm | Ra80/90, up to 170lm/W | 90° flush wash | Boutiques, showrooms, clean ceilings |
| GLOW-D DL01 downlight | 10–30W, 1450–4300lm | Ra90, up to 150lm/W | 38°/60°, UGR<22 | Entrances, circulation, dining zones |
| VUE-S TR0103 track spotlight | 20/25/32W, 4500lm | Ra90, up to 145lm/W | 15°/24°/36° | Mannequins, feature walls, windows |
| IRIS-S SL downlight | 10–32W, 1400–4400lm | Ra90, up to 145lm/W | 15°/24°/38°/60°, 90° tilt | Solid ceilings, no-cutout accent |
Figures from each model page (PANE-P LL1615, TRON-W LL1616, GLOW-D DL01, VUE-S TR0103, IRIS-S SL). Fresh-food counters use the VUE-F spectra series instead of the standard range above.
Ways to Work With Us
Five ways to work with us, from single stores to chain rollouts
Project Supply
Full fixture packages for new stores, refits and expansions — matched to your layout, budget and opening date.
OEM & ODM Builds
Custom housings, spectra and branding built to your spec — factory-direct OEM/ODM since 2010.
Ready Branded Range
Off-the-shelf catalog models with steady quality for buyers who want fast, straightforward procurement.
Bulk Partnership
Stable repeat supply with dependable lead times for chains adding branches month after month.
Retrofit Upgrade
Swap old heads for LED on existing tracks, add wireless dimming, and cut energy bills without rewiring.
Custom OEM & ODM Lighting Process
From brief to bulk delivery in six steps
01Share the Brief
Send your floor plan, target lux and CCT, volumes and deadline. Our engineers read the site first, then reply with what the store actually needs.
02Engineered Proposal
Fixture mix, aisle layout and beam plan matched to sales floors, displays and checkouts — quoted factory-direct with private-label options.
03Sample Sign-Off
Trial units are built for your approval on color, beam angle and finish. Bulk production only starts after you sign off the sample.
04Build & Inspection
Each batch passes aging, photometric and safety checks against CE and RoHS requirements, so every store in a rollout gets the same light.
05Pack & Ship
Export cartons with your label, consolidated by store rollout schedule and shipped to EU and AU sites since 2010.
06After-Sales Backup
5-year warranty with responsive replacements plus wiring and aiming guidance, keeping every branch running without dark aisles.
Retail Lighting FAQ
Lux, CRI, CCT and retrofit answers for buyers
