The Red Gap: Why Ra80 Misses What Buyers See

The Ra score most boxes print is an average of eight pastel samples, R1 to R8 — muted tones any standard LED reproduces easily. Saturated red, TCS9, is measured separately as R9 and never enters the Ra math, so a fitting can wear a respectable Ra80 or even Ra90 badge while rendering reds miserably: one industry teardown shows an Ra79 LED scoring R9 at minus 1.4, and spec guides warn that two CRI90 lamps on one shelf can hide R9 values as far apart as 15 and 95. On the sales floor that gap reads instantly — deep reds collapse toward brown, dark garments confuse navy with black, and faces look flat.

The trade answers with tiers buyers can actually specify:

• R9 0–20 — back-of-house. Warehouses, corridors and stockrooms where color never decides.
• R9 20–50 — general residential. Hallways and living areas, comfort without critical color.
• R9 50–80 — professional retail and hospitality. The working pro bracket, including California Title 24 JA8 compliance.
• R9 80-plus — galleries and studios. Art, photography and surgery-grade color.

For red-bearing zones — fitting rooms, apparel walls, fresh counters — guides converge on R9 above 50 as the working minimum.

Where Red Pays: Four Zones That Repay Ra90

Spectra explain why four zones repay Ra90 first — each lives on the red wavelengths standard LEDs starve:

• Skin — fitting rooms and hospitality guests. Human skin, every ethnicity, climbs past 600 nanometers on the back of blood flow, exactly the band R9 probes. Starve it and shoppers look pale and tired at the mirror; feed it and the same face reads healthy. Hotel guides pair warm 2700–3000K with Ra90 in guest rooms, lobbies and dining areas for this reason.

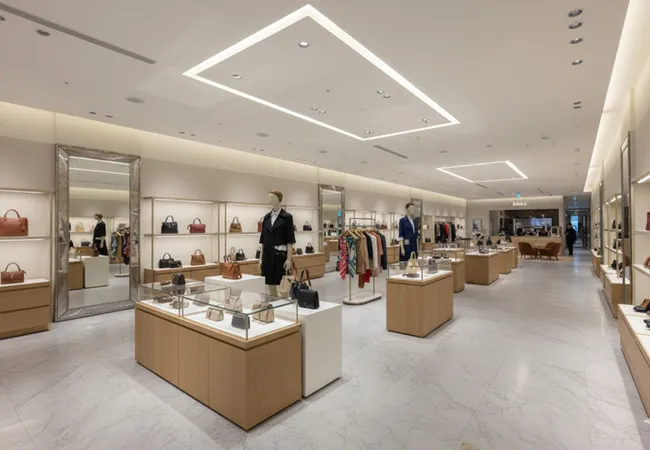

• Fabric — apparel walls and premium displays. Premium reds, blacks and patterns hold their campaign color instead of browning out, so the rack matches the lookbook.
• Wood and leather — restaurants, lobbies and guest rooms. Cherry, mahogany and walnut carry their warmth in red wavelengths, and low-R9 ceilings turn them muddy. Hospitality makers call out high CRI specifically for wood furniture, food and guests.
• Fresh food — produce and bakery. General Ra90 flatters produce and bakery cases at full output.

One boundary stays: meat counters earn dedicated spectra, which is why this page pairs the DL01-HE wash with a food-spectrum track head above the counters instead of pretending one spectrum does everything.

CRI vs TM-30: One Paragraph for Specifiers

CRI dates to the 1960s fluorescent era; TM-30-18 re-measures with 99 real-object samples and modern color science, reporting two numbers instead of one: Rf for fidelity (0–100, how close to the reference) and Rg for gamut (100 at reference, above 100 more saturated).

The split matters because fidelity alone cannot see preference — a U.S. Department of Energy demo found the most-liked source at Rf 84 with Rg 101 and a red lift, while an equally scoring desaturated source ranked last, and CRI graded both the same.

NIST vision work agrees: people prefer a modest chroma lift, which strict fidelity scores punish. Buyer tip for big tenders: ask for the TM-30 report and read Rf,h1 (the red bin) and the red chroma shift beside Ra — TM-30 Annex E even publishes red-aware tiers for vividness-first rooms.

The table below puts the DL01-HE against the two ceilings buyers usually compare — a standard Ra80 LED and a legacy halogen — so the trade reads in one glance.
