LED LINEAR LIGHT · LL1613 SERIES

SOLO-L High Lumen Linear Track

60W-90W · 13000LM · dual-tube linear track light for retail, supermarket and industrial spaces.

Home / Product / Led Linear Light / SOLO-L

White SOLO-L LL1613 high lumen dual-tube LED track linear light for supermarket high-bay
White SOLO-L LL1613 dual-tube track linear front view showing both tubes closed White SOLO-L LL1613 dual-tube track linear side view with tubes tilted ±90° for aisle

SOLO-L LL1613 High Lumen Dual-Tube LED Track Linear Light

SOLO-L · 60-90W DIP · 13000lm · 150lm/W · ±90° dual-tube

The SOLO-L LL1613 is a high lumen dual-tube LED track linear light for supermarkets delivering 60-90W DIP-selectable power, up to 13000lm at 150lm/W and independently rotatable dual tubes — each side ±90° with 60°/90° optics.

This high lumen track linear light targets high-bay aisles where height is the cost driver: one track point replaces two fixed battens, each dual-tube LED track light washing an aisle face. For supermarket aisle coverage from one point with flat panels, see the PANE-P LL1615 adjustable dual-panel LED track panel light with ±90° tiltable panels — and for the minimal 8mm profile in boutiques, the TRON-W ultra-slim LED linear track light is the alternative.

  • 60W-90W DIP adjustable, up to 13000LM
  • 150lm/w efficacy, CRI Ra>80/90
  • Dual side tube, ±90° independent rotation, 60°/90° beam
  • 4-wire 3-phase track adapter, White/Black
Download PDF Get Instant Auto-Quote (10 Mins)

Why SOLO-L Dual-Tube for High-Bay Aisles

13000lm from one track point — independently rotatable

SOLO-L dual-tube track light on the aisle rail: each semicircular tube has a flat emitting face and beams down to one aisle side 3-phase track rail runs along the aisle DIP 13000lm Left aisle 60° / 90° optics Right aisle UGR<21 · 150lm/W ±90° per tube · 60-90W DIP · dual CCT option

Each tube rotates ±90° independently

One Point, Two Light Fields — Higher Output for Higher Ceilings

The SOLO-L LL1613’s dual-tube architecture is the high-bay answer to the same aisle dilemma that PANE-P solves at lower heights: one 3-phase track point must wash two opposite shelf stacks, but from 5-6m the lumen bill is higher. Each tube of this high lumen dual-tube LED track linear light tilts ±90° independently, so left and right faces get dedicated 60°/90° beams from one housing — UGR<21 at 150lm/W.

This is the SOLO-L linear track light tuned for lumens per metre: 13000lm peak from 60-90W DIP steps lets a distributor stock one SKU for 4 power levels and cover both 3.5m supermarket aisles and 6m industrial bays. That is why retail lighting that combines high lumen linear main light with track spotlights specifies SOLO-L where bay height exceeds PANE-P’s 11000lm envelope — compare the PANE-P LL1615 adjustable dual-panel LED track panel light for 40-70W aisle-both-sides from 3-4m.

Power and colour are field-selectable per tube via DIP, with optional dual-CCT (warm shelf vs neutral walkway). For why track flexibility matters when layouts change, see why choose track lighting for retail stores.

High-bay top view: SOLO-L 13000lm single point vs linkable continuous run rack A 5m high rack B 5m high track rail (high-bay center) 1× SOLO-L dual-tube: 1 point = 2 sides · 13000lm ±90° each · 150lm/W linkable: run for uniformity linkable continuous 10× · both on the rail 10 fixtures for 12m run DIP 60/70/80/90W 1 SKU → 4 outputs

Top view 5m high-bay: SOLO-L single point vs linkable run; DIP halves SKU count

High Lumen Pays When Height Is the Cost

At 5m a fixed 4000lm batten is starved; the SOLO-L dual-tube delivers 13000lm peak so one track point still reaches both shelf faces when each tube is aimed 45-60° off-nadir. This high lumen track linear light earns its keep in fewer points and fewer watts per lux — the dual-tube LED track light replaces two fixed linears per bay and the DIP halves stock.

For siblings, compare: the PANE-P LL1615 adjustable dual-panel LED track panel light trades lumens for panel tilt at 11000lm for 3-4m aisles; the TRON-W ultra-slim 8mm linear track light trades adjustability for 8mm thinness at 10000lm — choose SOLO-L when ceiling exceeds 4.5m or the brief demands 90W. For continuous 10-fixture runs see the LINA-K LL1614 linkable LED linear light with DALI-2.

ModelFormOutputAdjustabilityBest for
SOLO-L LL1613Dual-tube60-90W · 13000lm · 150lm/W±90° per tubeHigh-bay 3.5-6m supermarket/industrial
PANE-P LL1615Dual-panel40-70W · 11000lm · 165lm/W±90° per panel + 360°Standard 3-4m aisle both sides
TRON-W LL1616Ultra-slim 8mm20-60W · 10000lm · 170lm/WFixed 90°Boutique / office low profile

Datasheet

LC-LL1613 full specifications

LC-LL1613
ModelLC-LL1613
Wattage60~90W by DIP
Lumen Output13000LM
SizeL930×W95×H95mm
Beam Angles60°/90°
Adapter4 wires(3phase)
ColorWhite/Black
UGR<21
CRIRa>80/90
Get Quotation

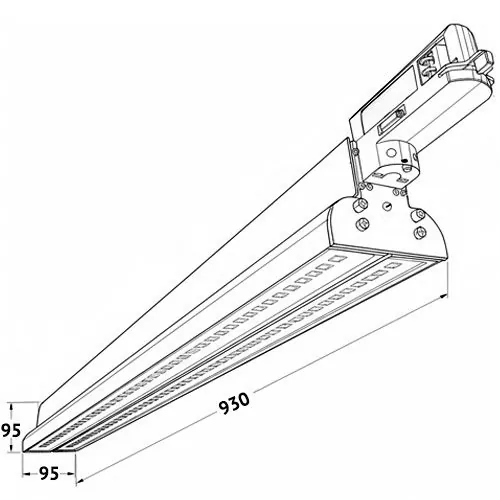

White SOLO-L LL1613 high lumen dual-tube track linear dimensions L930xW95xH95mm

FAQ

Quick answers about the LL1613 series

Yes — each tube rotates ±90° independently for full directional flexibility. Additionally, power output from each side can be customized via DIP switches, giving you full control over light level balance between sides. Optional customization allows different CCTs per tube for dual-tone applications.

The built-in DIP switch lets you set the total system wattage from 40W to 90W without external tools. This is ideal for:

  • Stocking one model — to serve multiple wattage requirements
  • Field adjustments — based on real-world lux requirements
  • Reducing inventory complexity — one SKU covers multiple outputs

Yes — standard 60° or 90° PMMA lens optimized for linear aisle or open-area lighting. For large-scale projects, we can provide custom optical lens configurations such as asymmetric wall washing or narrow-beam shelf focus. Dialux files and IES photometry are available upon request.

Absolutely — TRIAC, 0-10V and DALI dimming on request in addition to onboard DIP control. This makes it fully compatible with most smart lighting infrastructures, including KNX, Casambi, Lutron, and Philips Dynalite systems.

Yes — each tube can take a different CCT, allowing the same fixture to emit both warm and neutral light. This is ideal for:

  • Zoning merchandise vs. walking paths — warm shelf vs neutral walkway
  • Highlighting vs. ambient contrast — accent against general illumination
  • Dual-tone scenes — museums or retail stores needing two CCTs in one housing

Yes — up to 13000 lumens at 150 lm/W is powerful enough for supermarkets, warehouses and high-bay commercial spaces. Combined with its adjustable optics, it works perfectly in spaces 3.5–6 meters high.

Standard 4-wire 3-phase track adapter compatible with Global Trac (Nordic), Eutrac, Stucchi and most European/Australian commercial track systems.

Standard 3–5 year warranty with spare drivers/LED modules per shipment and remote troubleshooting via video or drawings for international clients.

Application

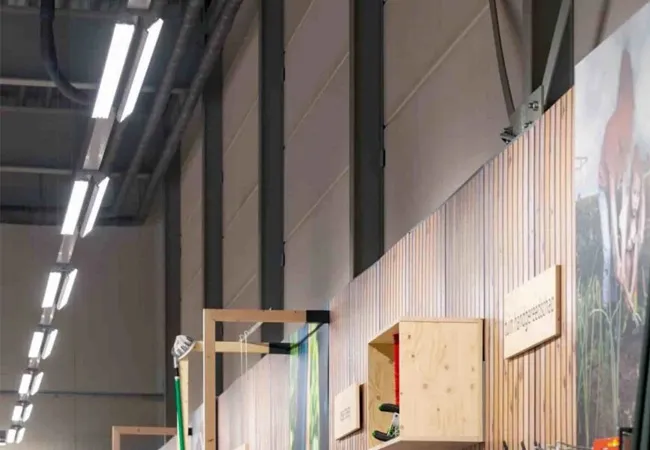

LL1613 in real retail and commercial spaces
