LED TRACK LIGHT · VUE-K SERIES
VUE-K Knob Dim Track Light
145lm/W · Ra90 · 20W/25W/32W — 3-step CCT plus knob dimming.
Home / Product / LED Track Light / VUE-K
VUE-K CCT selectable knob dimmable LED track light in black finish — CCT dial plus dimming knob on the adapter.
Note: Images are for reference only. Housings and drivers can be combined to suit your preference — contact us for an accurate quotation.
VUE-K LED Track Light
VUE-K series · 145lm/W · CRI90 · 20W/25W/32W · Knob + CCT inside
The VUE-K is a CCT selectable knob dimmable track light, pairing a 145lm/W Ra90 light engine with an Allooking adapter that carries a 3-step CCT dial and a stepless dimming knob, so each head sets its own white tone and brightness by hand with no wall dimmer, no app and no control wires.
It offers a maximum power of 32W and up to 4500lm for 3–5m retail ceilings. Staff adjust display lighting the way they aim the heads — twist, slide, done — which makes VUE-K the fastest fixture to commission on site. Every VUE-K ships with a 5-year warranty.
- 145lm/W high efficacy, CRI >Ra90
- 20W / 25W / 32W, up to 4500lm
- 3-step CCT dial, warm / neutral / cool white
- Stepless knob dimming on each head, 5-year warranty
Datasheet
Full specifications for all three models
| LC-VUEK-20W | |
|---|---|
| Wattage | 20W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 2850lm ±5% |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36° |
| CCT | 3-step dial, warm / neutral / cool |
| Finishing | White/Black |
| Dimming | Knob stepless, on-head |
| Adapter | 4-wire track, CCT + knob built in |
| LC-VUEK-25W | |
|---|---|
| Wattage | 25W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 3550lm ±5% |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36° |
| CCT | 3-step dial, warm / neutral / cool |
| Finishing | White/Black |
| Dimming | Knob stepless, on-head |
| Adapter | 4-wire track, CCT + knob built in |
| LC-VUEK-32W | |
|---|---|
| Wattage | 32W ±5% |
| Input Voltage | 220-240V AC 50/60Hz |
| Lumen Output | 4500lm ±5% |
| CRI | >Ra90 |
| Beam Angle | 15°/24°/36° |
| CCT | 3-step dial, warm / neutral / cool |
| Finishing | White/Black |
| Dimming | Knob stepless, on-head |
| Adapter | 4-wire track, CCT + knob built in |
Why VUE-K for Hands-On Store Lighting
CCT and brightness set by hand on each head
VUE-K Knob Dimming Against DIP-Preset Selectable Lights
Selectable-output lights and knob-dimming lights solve different problems. A DIP-preset head is configured once with the power off to cut distributor stock — see the DIP selectable track light when one SKU must cover nine CCT and wattage combinations. VUE-K is the opposite workflow: a stepless knob on every head adjusts brightness live, and a 3-step dial switches white tone, so shop staff tune each display with the power on and their hands on the fixture. Compare housings across the full LED track light family when a project mixes preset stock heads with hands-on heads.
VUE-K 3-Step CCT for Store Zones
Different merchandise sells under different white tones, and one store often needs all three:
- Warm white — jewelry and bakeries: cozy tones that flatter gold, wood and fresh bread.
- Neutral white — apparel floors: balanced tone that keeps colors and skin tones honest.
- Cool white — supermarkets and displays: crisp tone that reads clean and bright over aisles.
Each VUE-K head carries its own dial, so the window runs warm while the aisle runs cool — no central controller decides for the whole store. For wall-dimmer circuits instead of on-head control, see the TRIAC wall-dimmer track light; for phone scenes per fixture, see the wireless Casambi track light.
VUE-K Optics and Color for Merchandise Displays
Hands-on control only matters if the light itself sells goods. VUE-K keeps the proven retail optic set — 15° for jewelry and focal points, 24–36° for mannequins and shelving — with a CRI Ra90 engine behind every CCT step, plus flicker-free output at PF above 0.9 and 88% driver efficiency.
CCT dial plus dimming knob ride on the adapter — set by hand, live.
VUE-K CCT plus knob adapter (Allooking ALW40): 3-step CCT dial with stepless dimming knob.
| Model | How output is set | When it is set | Best for |
|---|---|---|---|
| VUE-K (this page) | Knob dim + 3-step CCT dial | Live, by hand on each head | Staff-tuned displays |
| VUE-D 650 | DIP CCT + power preset | Once, power off at install | Distributors cutting SKU count |
| VUE-T TRIAC | Wall dimmer, whole circuit | Anytime, one knob per rail | Budget refits, single mood |
FAQ
Quick answers about the VUE-K series
One is tuned live, the other is configured once: VUE-K adjusts brightness and white tone by hand with the power on, while a DIP-preset head is set with the power off at installation to reduce stock-keeping units.
Choose by workflow
- Choose VUE-K: staff re-tune displays weekly or seasonally.
- Choose VUE-D: distributors want one SKU to cover nine combinations.
- Mix both: preset heads for stable aisles, knob heads for feature zones.
The VUE-K ships exactly this hands-on configuration as 20/25/32W knob heads.
Warm, neutral and cool in three dial steps: warm flatters jewelry and bakeries, neutral keeps apparel honest, cool reads crisp over supermarket aisles — each head set independently. Exact Kelvin values are confirmed per order against the driver bin, so tell us the three tones on your plan and we match the dial before shipment. Every VUE-K dial is verified to its marked tone before it leaves the factory.
Neither: the stepless knob sits on the track adapter itself, so brightness follows a twist of the hand with the existing on/off switch untouched. That makes VUE-K the only dimming track light in our range with zero companion hardware — no dimmer to buy, no app to install, no gateway to power. The VUE-K dims the day it clicks onto the rail.
Yes — that is the whole point of on-head control: every fixture carries its own knob and dial, so one rail can run warm and bright over jewelry, neutral and medium over apparel, cool and low over the aisle.
One rail, three moods
- Feature head: warm tone at full for the new collection.
- Shelf heads: neutral tone at medium for everyday stock.
- Aisle head: cool tone dimmed for background fill.
VUE-K regroups displays without touching a single switch or phone.
About three times the light per watt of old halogen track heads: one 32W VUE-K delivers 4500lm where halogen needed roughly 250W, and staff dim each head to the level the display actually needs. The VUE-K pairs that efficacy with 88% driver efficiency and flicker-free output, so savings hold at every knob position.
Standard warranty is 5 years with spare knob-CCT adapters shipped with each order, plus a CCT confirmation sheet matching dial steps to Kelvin before mass production. The VUE-K driver carries full protection circuitry with CE and CB marks, so most support cases end at the tone-matching step.
Application

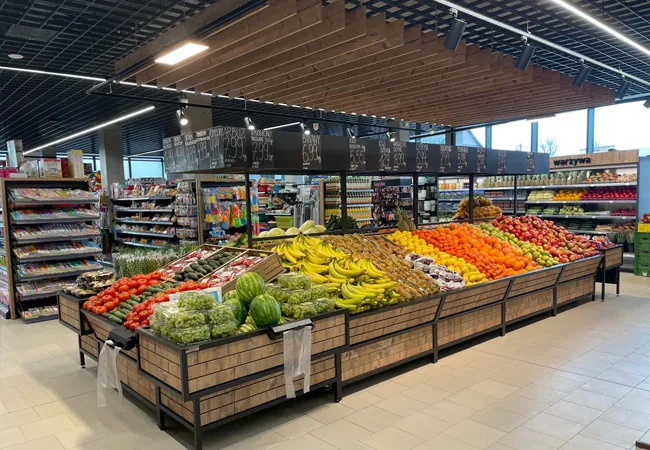

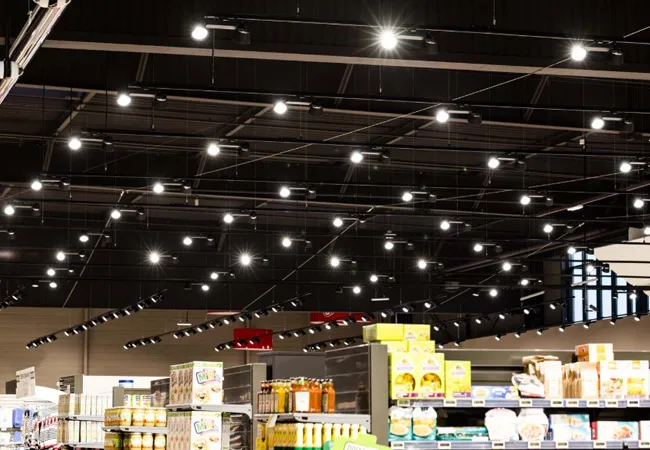

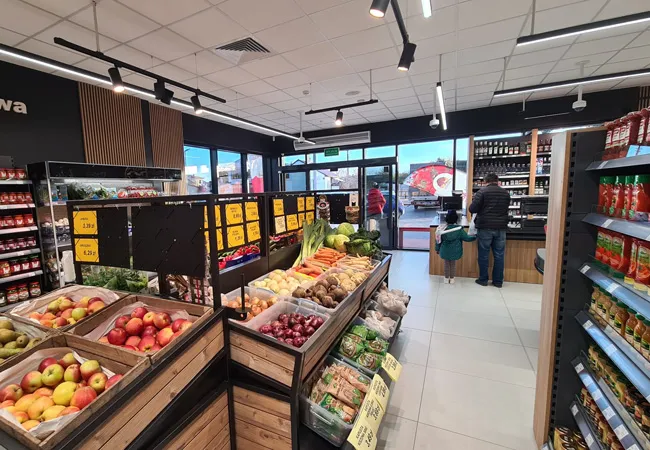

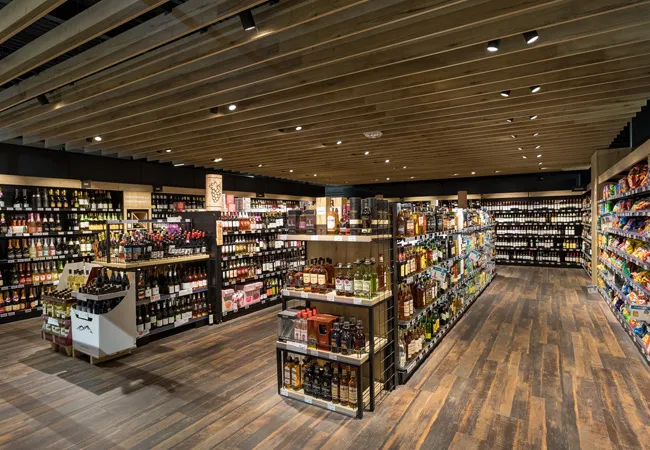

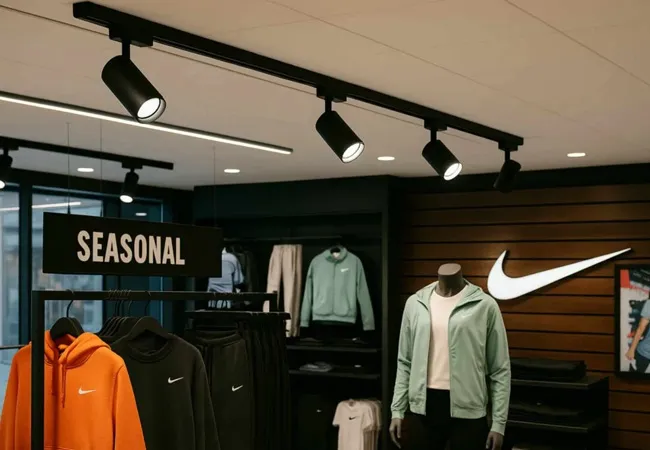

VUE-K in real retail and commercial spaces
